Rims
- Wheel Size / ETRTO
- 29"/ 622 mm
- Tubeless Compatibility
- Yes
- Insert Compatibility
- Yes
- Brake Compatibility
- Disc (Centerlock)
- Rim Construction
- Carbon Clincher Mini Hooked
- Valve Stem Length
- Roval Tubeless Valve, Alloy 34mm
- Hole Count
- 20H
- Rear Rim Dimensions
- Depth: 26mm, External Width: 36.5mm, Internal Width: 28.5mm, Bead Hook Width: 4mm
- Rear Rim
- Control World Cup Carbon 29" (WC042)
- Front Rim Dimensions
- Depth: 26mm, External Width: 36.5mm, Internal Width: 28.5mm, Bead Hook Width: 4mm
- Front Rim
- Control World Cup Carbon 29" (WC042)
Hubs

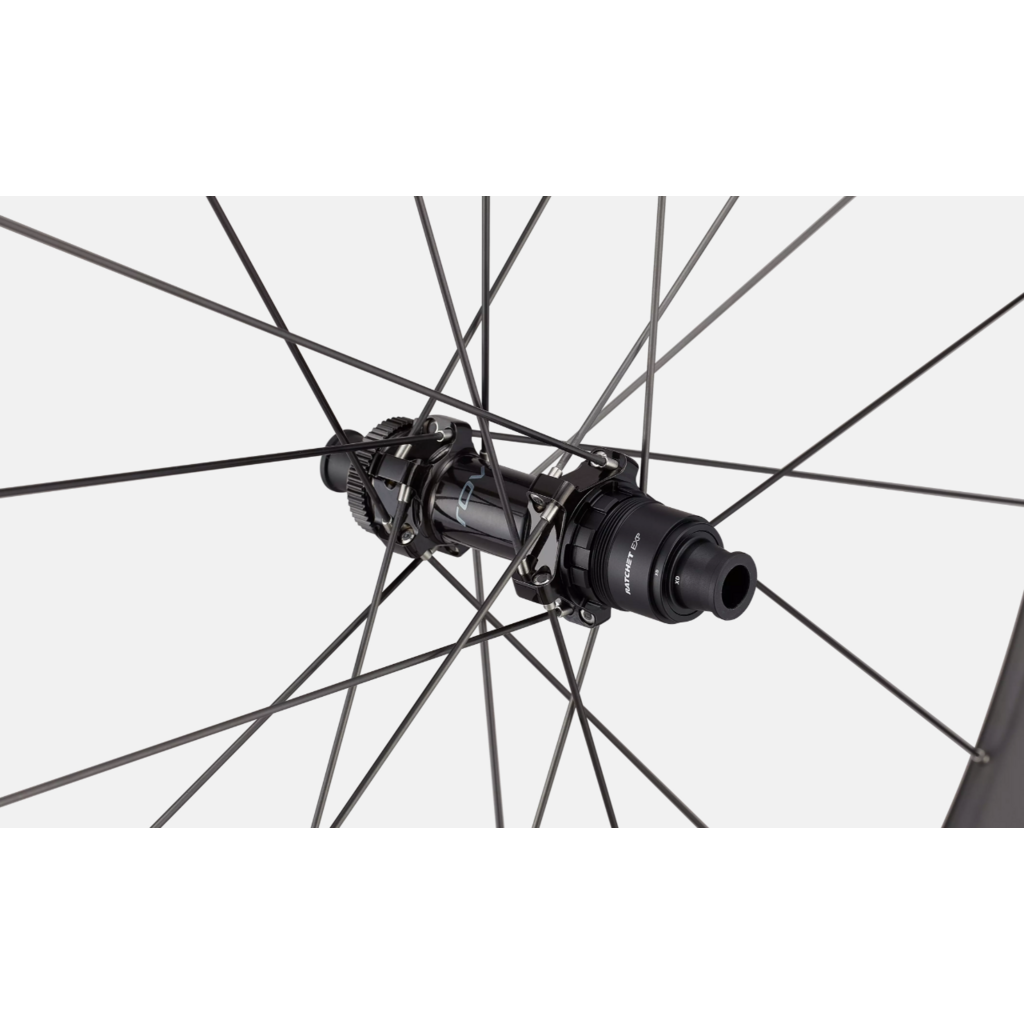

- Rear Hub
- Roval Low Flange Mountain Hub , Center Lock, 12x148mm (LFM24)
- Rear Freehub Body
- DT Swiss Ratchet EXP (36T ): Sram XD
- Rear Hub Bearing
- DT Sinc Ceramic Bearings - DS:1526 (15 x 26 x 7 mm), NDS: 6802 (15 x 24 x 5 mm)
- Front Hub
- Roval Low Flange Mountain Hub, Center Lock, 15x110mm, 19mm OD End Caps Installed (LFM23)
- Front Hub Bearing
- DT Sinc Ceramic Bearings - DS: 6802 (15 x 24 x 5 mm), NDS: 6802 (15 x 24 x 5 mm)
Spokes & nipples
- Nipples
- VONOA Internal Carbon Spoke Nipple, Alloy, 8.1mm
- Rear Spokes
- Custom Tuned for Roval, Vonoa Carbon w/Ti End Pcs: Straigh-Pull, 20qty
- Rear Lacing Pattern
- Two-cross/Two-cross (1:1)
- Front Spokes
- Custom Tuned for Roval, Vonoa Carbon w/Ti End Pcs: Straigh-Pull, 20qty
- Front Lacing Pattern
- Two-cross/Two-cross (1:1)
Tire info
- Tubeless Tape Width
- 30mm
- Tire Type
- Tubeless, Tube Type Clincher
- Design Tire
- Specialized Air Trak 29x2.35 Flex Lite
- Max Pressure
- Tubeless 40psi , Tubed 40psi
- Approved Tire Widths
- 1.9-2.6
Weight
- Wheelset Weight
- 998g (with valves and tape)
- Rear Weight
- 546g (with valves and tape)
- Front Weight
- 452g (with valves and tape)
General
- Warranty
- Limited Lifetime Warranty
- Assembly Method
- Hand Built
- Weight Limit
- 275 lbs. / 125 kg.
- E-bike Approved
- No
- Extras
- Roval Single Wheel Bag, 4 Extra Spokes and Nipples, 31mm OD End Caps, 2 sets of Roval Decal Stickers (Liquid Silver, Metallic White)
