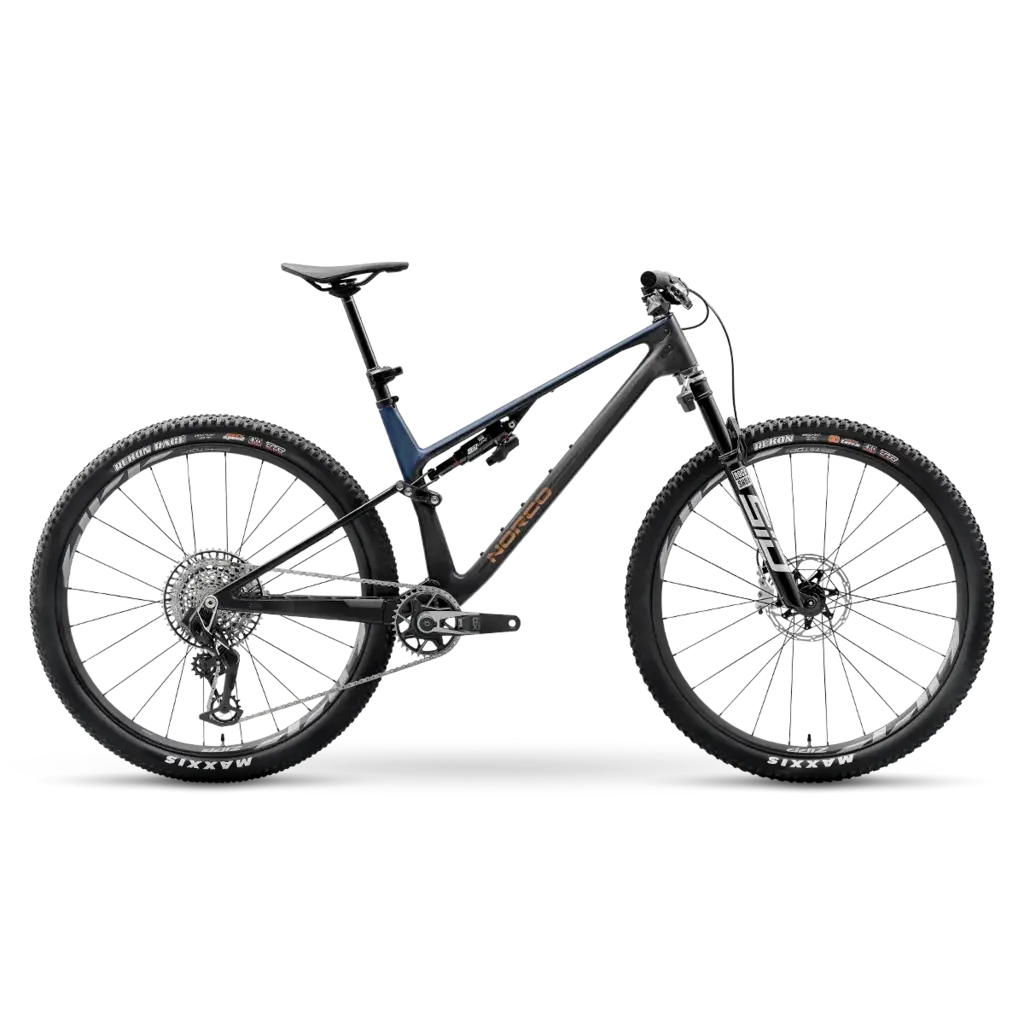

Revolver C SE 120 sets the bar for what a Cross-Country bike can do. With 120 mm of front travel and 115 mm at the rear, it's fast, efficient, and capable.
Quick and snappy on acceleration, whether you're going up or ready to rip down, its suspension performance is well beyond what you can expect from a shorter travel bike. Head out for epic days, attack climbs, and crush descents, while cruising through the singletrack; it's the best choice for stage races or all-day adventures.
Efficient where it counts, aggressive where it matters.
The Revolver C SE 120 is the lightest and most capable full-suspension frame Norco has ever built. At the core of its efficiency is our advanced approach to the Flex-Pivot design, letting us get improved performance out of the lightweight inline shocks we’re spec'ing that would typically be reserved for heavier and larger volume air shocks. With modern, aggressive XC geometry, consistant weight distribution across sizes, and a carbon frame layup optimized per frame size for stiffness and compliance, it’s a strong foundation for driving up and charging down.
Details
- Precision and control for all-day efficiency.
- All the suspension performance without the weight.
- Customized suspension development to support Revolver's best attributes.
- A lightweight frame that encourages putting the hammer down.
- Balanced weight distribution for top-of-class ride feel across sizes.
- Ride Aligned™ - Perfect fit, dialed handling and personalized setup in minutes.
- No Other Way Limited Lifetime Warranty.
| Frame |
Carbon Frame, 115mm Travel, UDH, Eagle Transmission Compatible, Ride Aligned™ |
| Fork |
Rockshox SID Ultimate FA, 120mm, 44mm offset, Fender Included |
| Rear Shock |
Rockshox SIDLuxe FA, 190x42.5mm, standard |
| Rear Shifter |
SRAM Pod Controller, MMX Bridge |
| Rear Derailleur |
SRAM XX SL Eagle AXS T-Type, 12sp |
| Crankset |
SRAM X0 Eagle, 34T, CL55, 170mm (S1,S2) -175mm (S3,S4,S5) |
| Bottom Bracket |
SRAM DUB, BSA 73mm, MTB WIDE |
| Cassette |
SRAM 1297 Eagle T-type, 10-52T, 12sp |
| Chain |
SRAM XX Eagle T-Type Flat Top, 12sp |
| Front Brake |
Sram Motive Ultimate, 4-Piston |
| Front Brake Rotor |
SRAM Centerline X, 180mm, 1.85mm Thickness, 6-bolt |
| Rear Brake |
Sram Motive Ultimate, 4-Piston |
| Rear Brake Rotor |
SRAM Centerline X, 160mm, 1.85mm Thickness, 6-bolt |
| Handlebar |
Race Face ERA35, 760mm (S1,S2,S3) / 780 (S4,S5), 20mm rise |
| Stem |
Alloy CNC, 50mm Length, 35mm Clamp |
| Seatpost |
Rockshox Reverb AXS B1, 31.6.mm, 125mm (S1, S2) 150mm (S3) 175mm (S4) 200mm (S5) |
| Headset |
FSA No 42/48ACB Integrated Headset, Tapered 1-1/8" - 1.5" |
| Saddle |
Fizik Terra Ridon MG Rail |
| Grips |
WTB Wavelength |
| Seatpost Clamp |
Norco bolted, 34.9mm ID |
| Front Hub |
Zipp 1Zero Hitop S, 15x110mm Boost, 6-bolt |
| Rear Hub |
Zipp 1Zero Hitop S, 12x148mm Boost, XD, 6-bolt |
| Rims |
Zipp 1Zero Hitop S Carbon, 30mm ID, 29" |
| Front Tire |
Maxxis Rekon, 3C Maxx Terra EXO, 29x2.40" |
| Rear Tire |
Maxxis Rekon Race, 3C Maxx Speed EXO, 29x2.40" |
| Rear Hub Skewer |
148mm x 12mm TA, L174, TL13, M12x1.1 |
| Spokes/Nipples |
CX-Sprint |
| Valves |
Zipp tubeless valves |
| Sealant |
Stans 250ml sealant |
| Weight |
10.8 kg (24 lbs) |
| Weight Size |
S3 |
