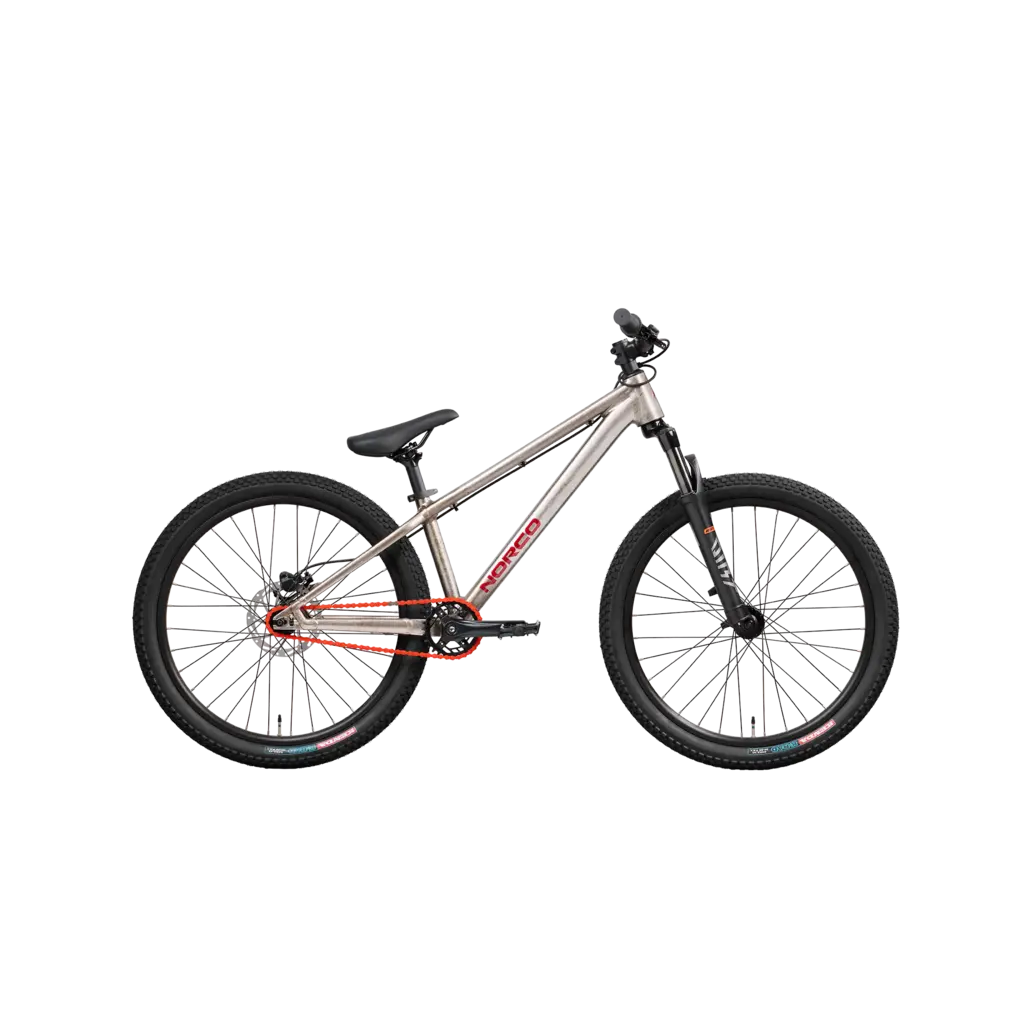

Norco Rampage 24 Silver

Design features

• The strength of a custom-designed forged BB yoke allows shorter chainstays for agility, and slotted dropouts feature low-key chain tension adjusters.
• The Rampage Youth brings the latest pro-rider-inspired dirt jump frame design to riders who, despite their size, need a bike that lives up to their skills. Short chainstays, added tire clearance, and low standover let little rippers send big air.
• With the same features as our adult models, the Rampage Youth comes with an hydroformed aluminum frame and virtually invisible welds.
• Look good while you shred with a ride as smooth as the jumps you’ll send.

Specifications

• Square taper axle BB (BB-19E), 122.5mm axle, 73mm threaded BB
• Single speed cassette 14T (KT)
• KMC Z1 single speed chain 1/2 x 3/32", Wide, Natural Black
• JY 140mm 3pc direct mount narrow/wide 30T ring, Anodized Black w/o logo
• RST Dirt R 80mm 26", Post Mount
• Aluminum DJ 24"
• Tektro MD-280 160mm Mech Disc, 6 Bolt
• 160mm, 6 Bolt
• Norco Alloy Disc Hub 32H w/flange nuts, 6 Bolt
• Kenda K-Rad 24" x 2.3", 30 tpi, Wire Bead, Black sidewall
• Norco JR Grip 115mm length, lock on w/alloy clamp, Black
• Alloy 660mm, 30mm rise, 31.8 bar bore, SB Black
• Internal tapered 1.5" to 1-1/8", Alloy cups, ACB 1-1/8" Upper, 1.5" Lower, W/5.3mm top cover (H2051A), Sealed Bearing, SB Black, Stack 13.4mm
• BMX flat pedal with metal pins, 9/16" steel axle, Black
• Tektro HD-M281 Hydraulic 160mm, 1650 hose length
• 160mm, 6 Bolt
• Novatec alloy sealed bearing 32H disc hub, w/14T single spd cassette, Axle M10x180x135mm, D:20mm, 6Bolt, W/Flange Nuts & Lockring x 1, Polishing Anodized Black, W/Novatec Logo
• Kenda K-Rad 24" x 2.3", 30 tpi, Wire Bead, Black sidewall
• XDS 24", Inner width 24.7mm, 32H, Black anodized
• Norco One Piece Saddle, w/ SB Black 27.2x200mm seat post
• 27.2mm ID, 200mm Length
• Zoom, Norco alloy QR, 31.8mm, BB black anodized
• Short reach 45mm ext MTB stem, 31.8 bar bore, SB Black w/o logo
