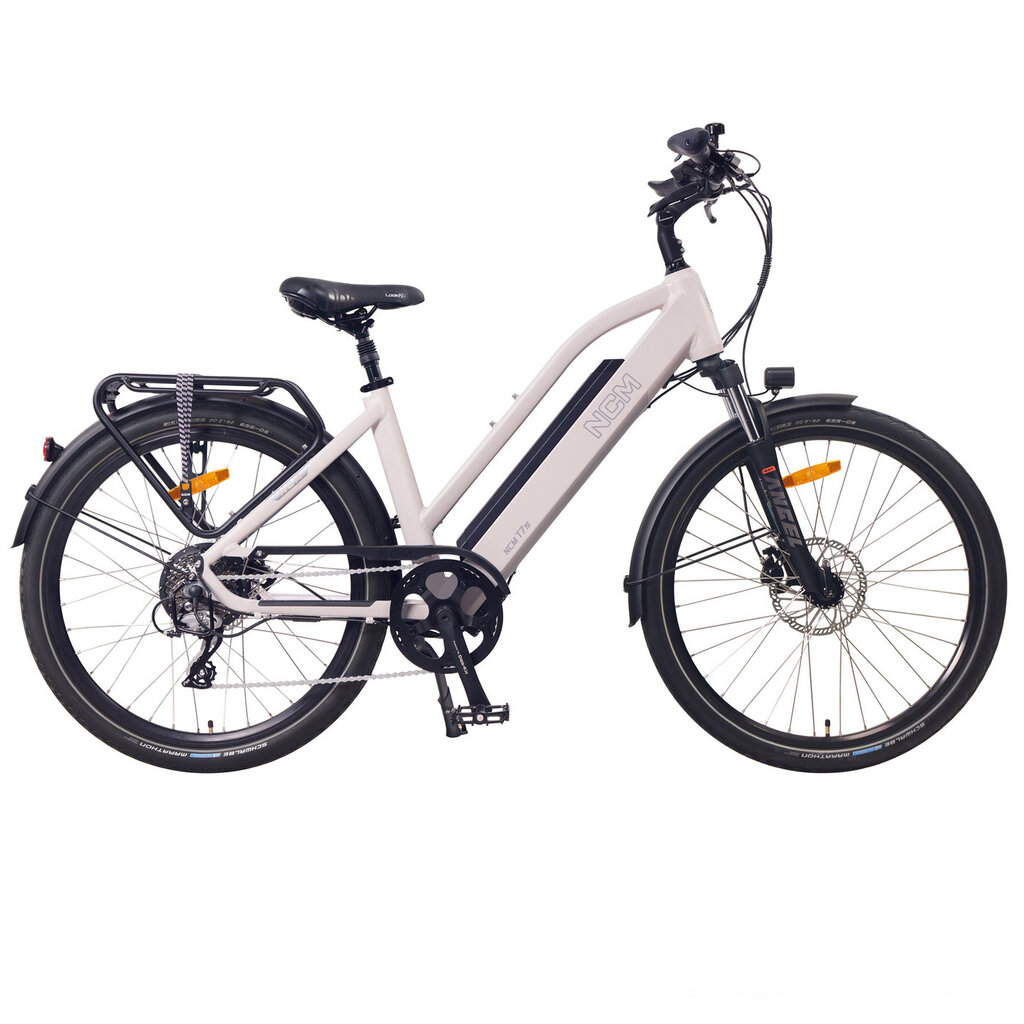

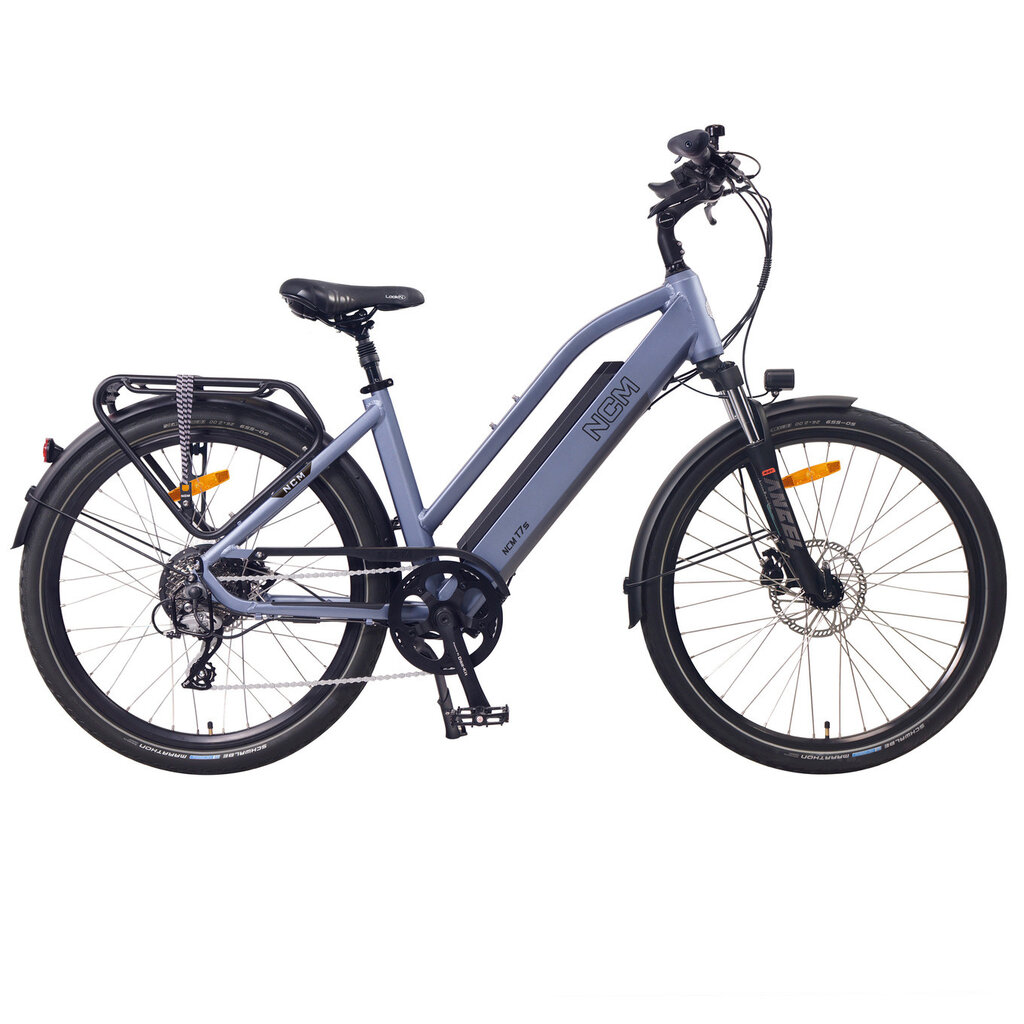

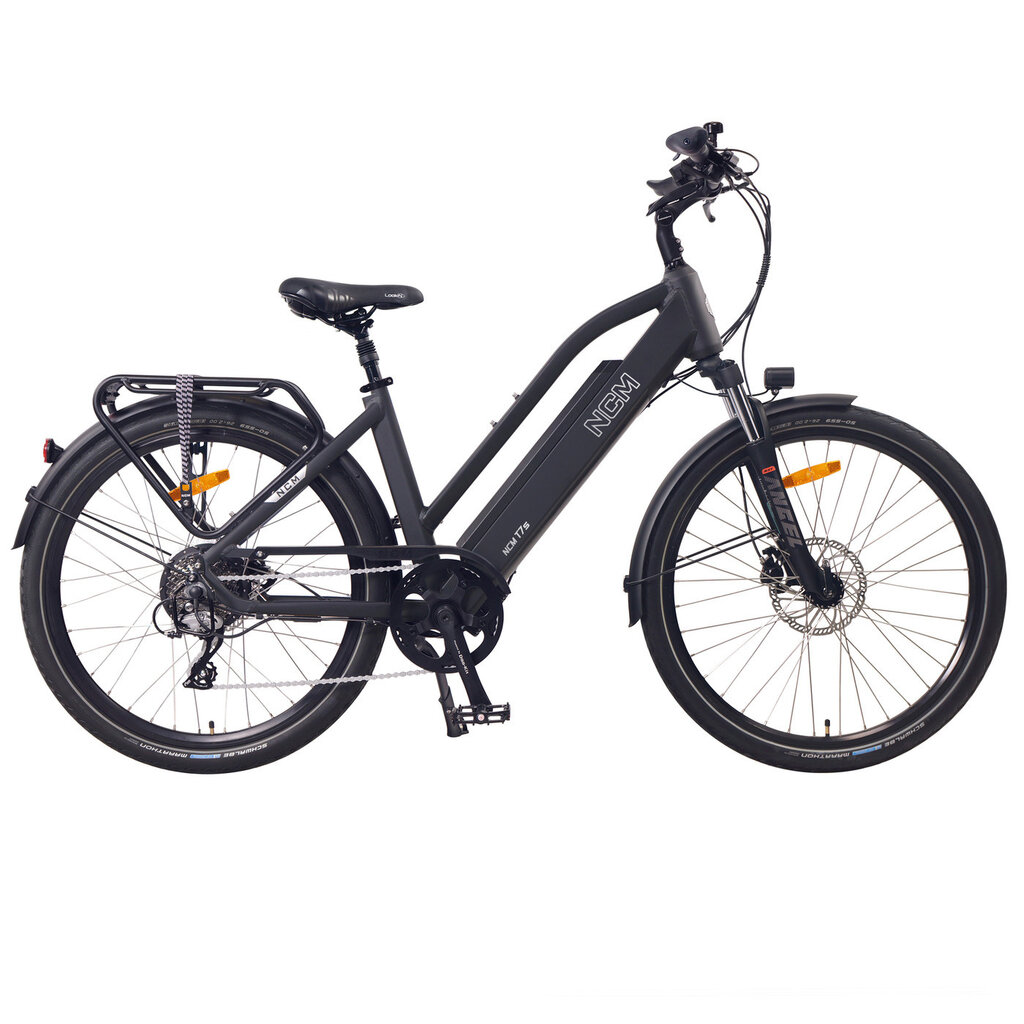

NCM T7s-step-thru-trekking-e-bike-250w-48v-19ah-912wh

Balancing accessibility with superior specifications, the NCM T7s is a step-through e-trekking bike for riders who are eager to tackle longer routes alongside their daily rides and want an e-bike with the range and the integrity to help them do it.

KEY FEATURES

• Ergonomic bicycle Grips
• Comfortable sitting posture
• All important controls are easily accessible
• Supplied with 48V to deliver a high-output power
• Das-Kit 250W Motor (500W Peak Motor Power)
• Over 912Wh capacity for a longer distance
• Equipped with an Intelligent Torque sensor
• Built-in GPS (Battery Tag Technology)
• Up to 180 km Battery Range(depending on the conditions)
• Easily removable battery so you can charge it anywhere
• A built-in USB port with 5V to charge mobile phones

ELECTRIC COMPONENTS

Battery: Das-Kit, i7-4819, 48V 19AH, 912WH, with TAG Technology

Motor: Das-Kit, X15, rear-drive motor, 48V 250W, 25KM/H

Controller: Das-Kit, T7, 48V 18A

Charger: Das Kit, 48V 3A

Display: Das-Kit, C8, with USB

Front Light: DH007Plus, 48V, 70Lux

BIKE COMPONENTS

Frame: Alu. 6061, 26x430mm, Alu. 6061, 28x460mm

Suspension Fork: RST, ANGEL-TNL 26, with hydraulic lock system, Magnesium

Brake: F: Das-Kit, hydraulic disc brake,DK-100E,180mm rotor
R: Das-Kit, hydraulic disc brake, DK-100,180mm rotor

Freewheel: 8 Speed, 11-32T

Tyre: 26x2.0, 28x2.0

Saddle: Selle Royal, Lookin, Black

Stem: Promax, MA-579

Crank: Das-Kit, 46T

Shifter Right: Shimano, Altus, R: SL-M315-8R, 8 Speed

Rear Derailleur: Shimano, Acera, RD-M360

Chain: KMC, Z8.3RB, Silver

WEIGHT

Weight (without battery): 24.6KG

Battery Weight: 4.8KG

E-Bike Weight: 29.6KG

Max Load (rider+bike): 140KG
