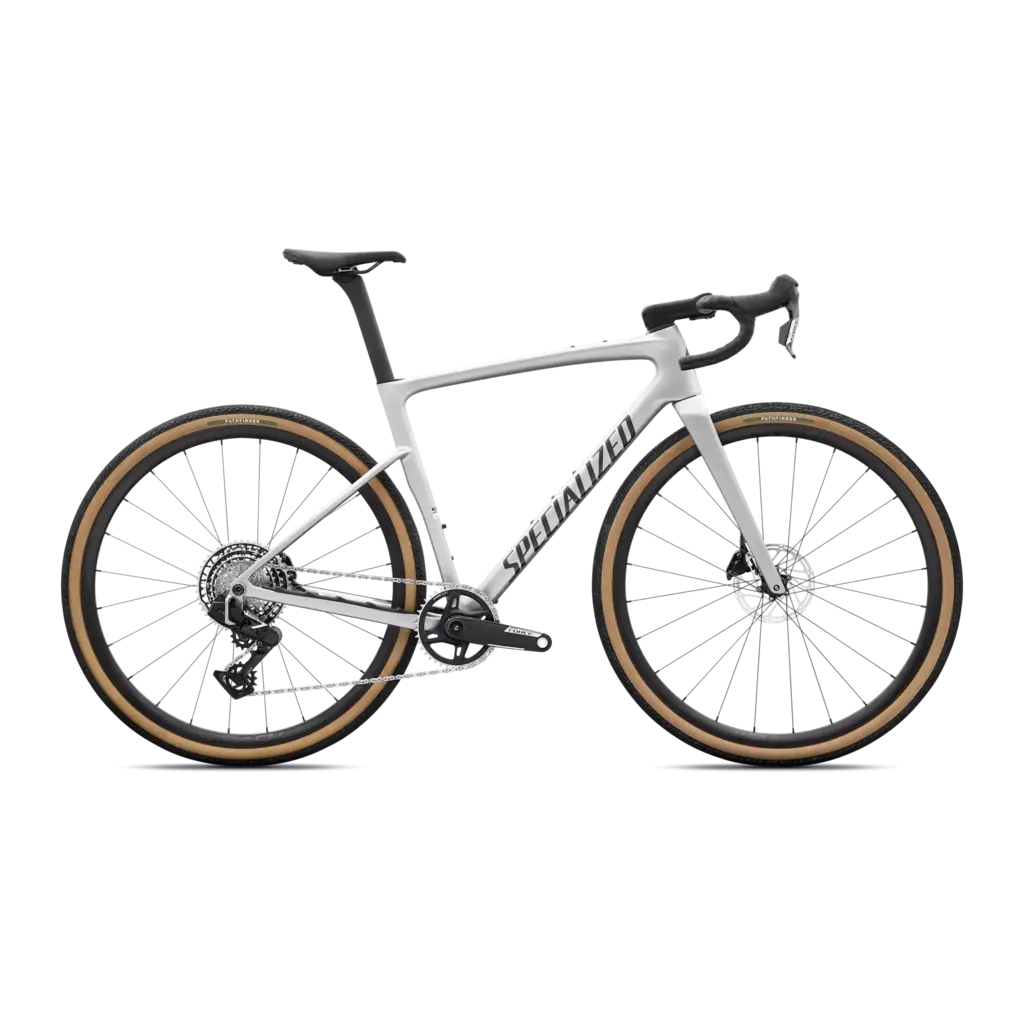

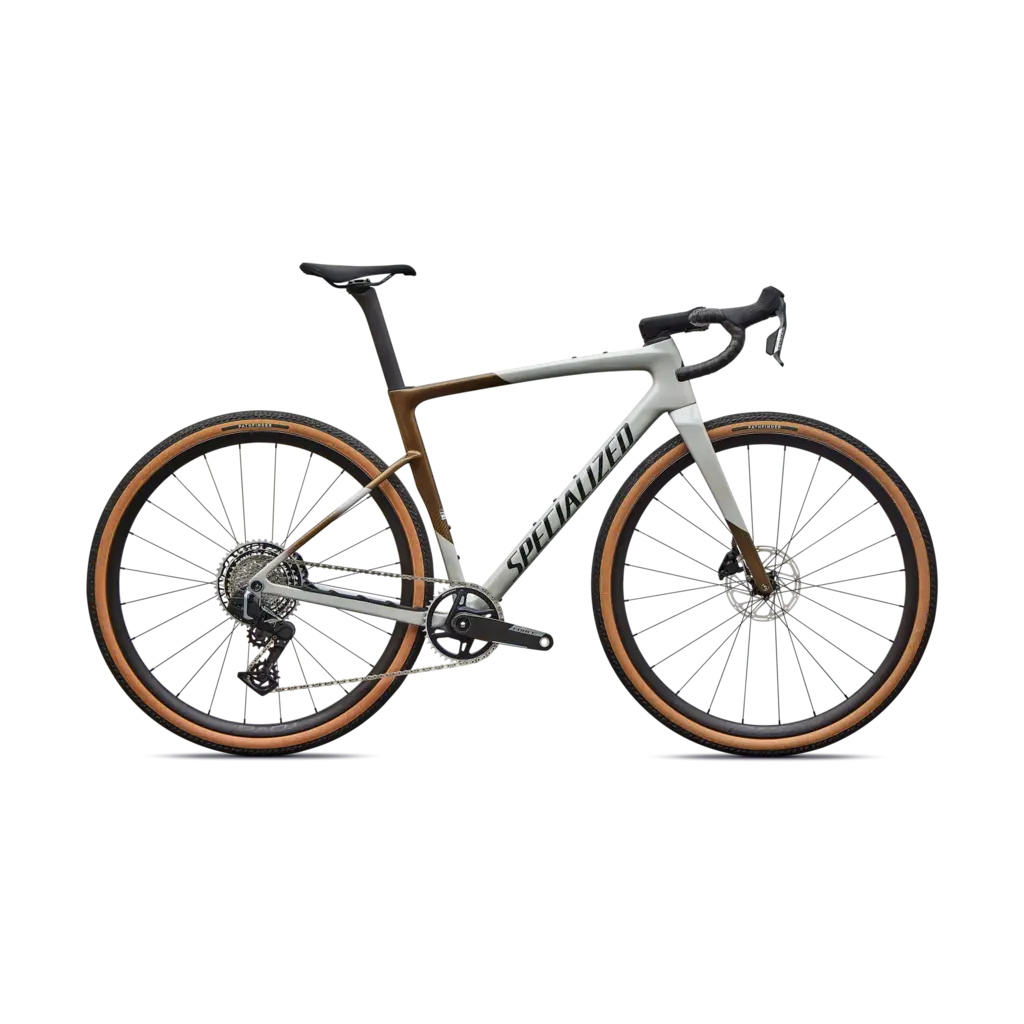

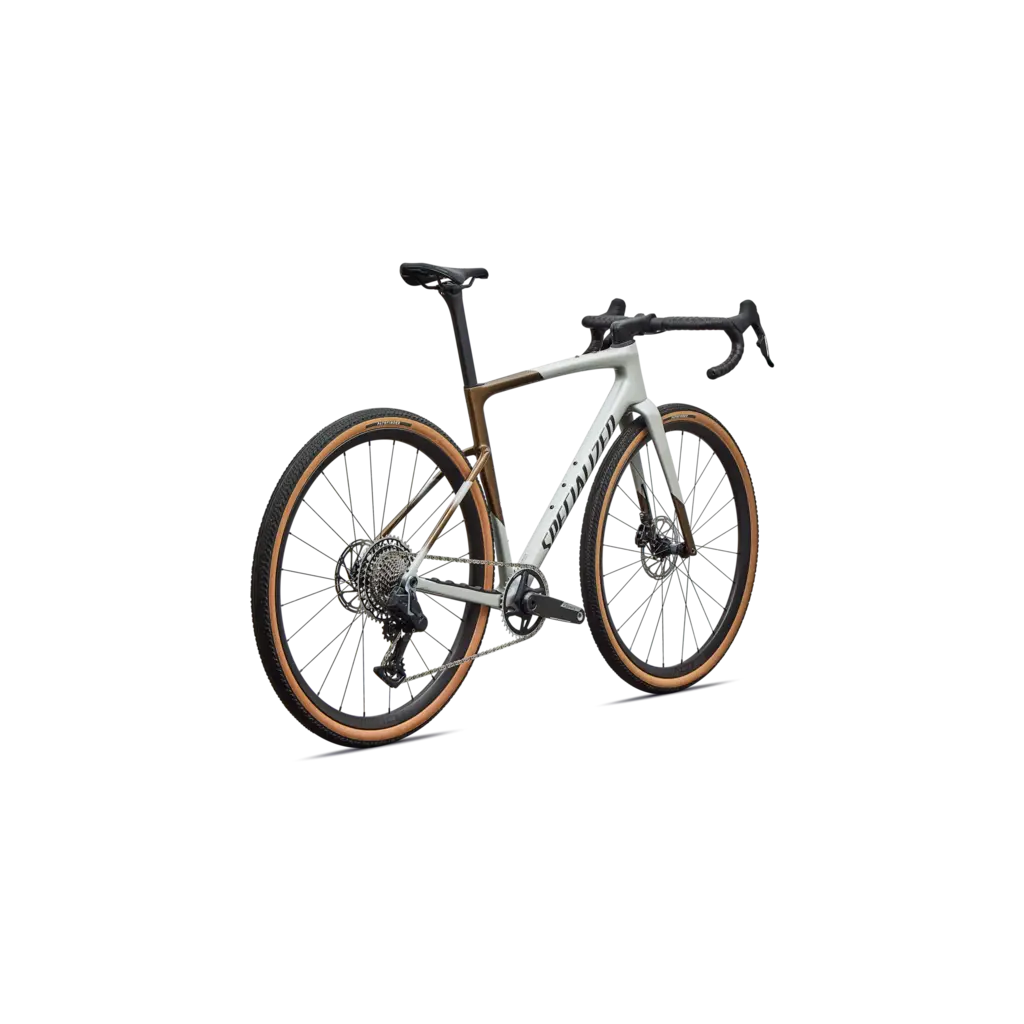

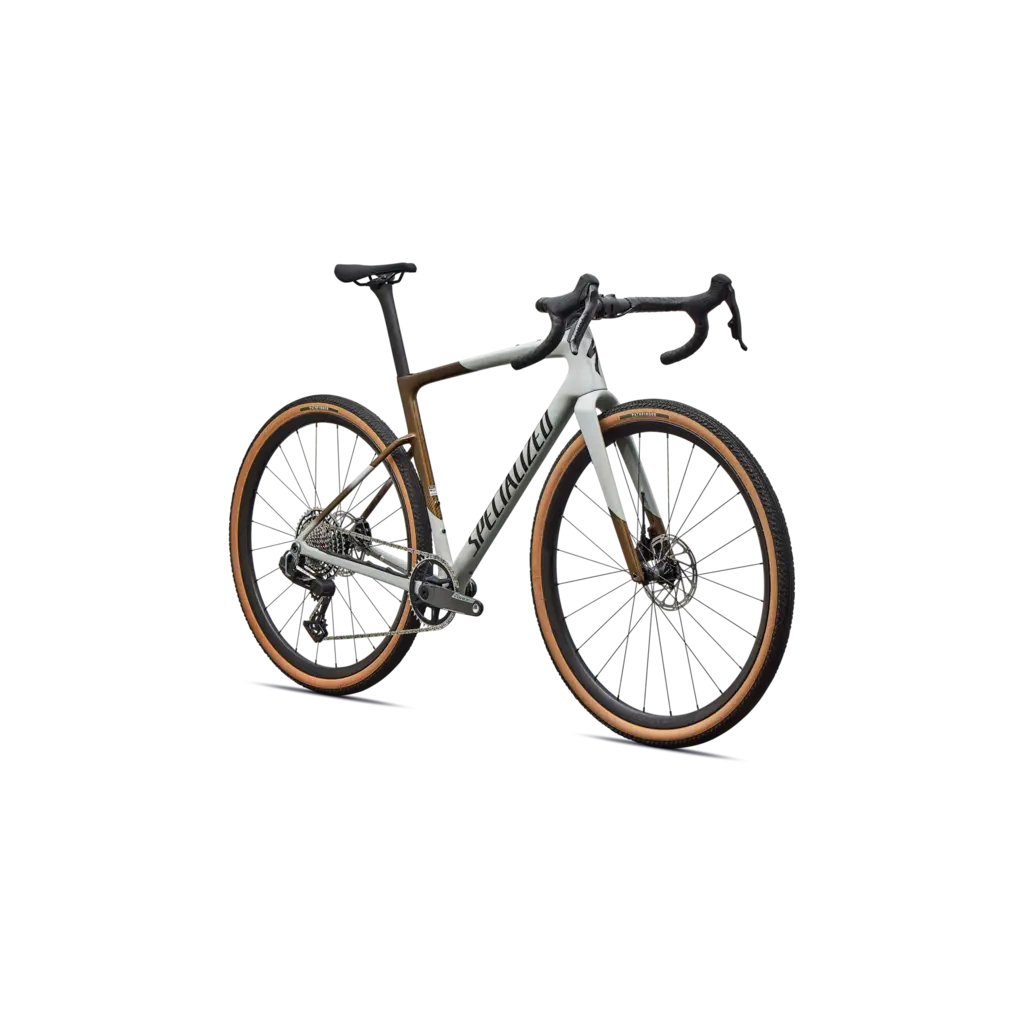

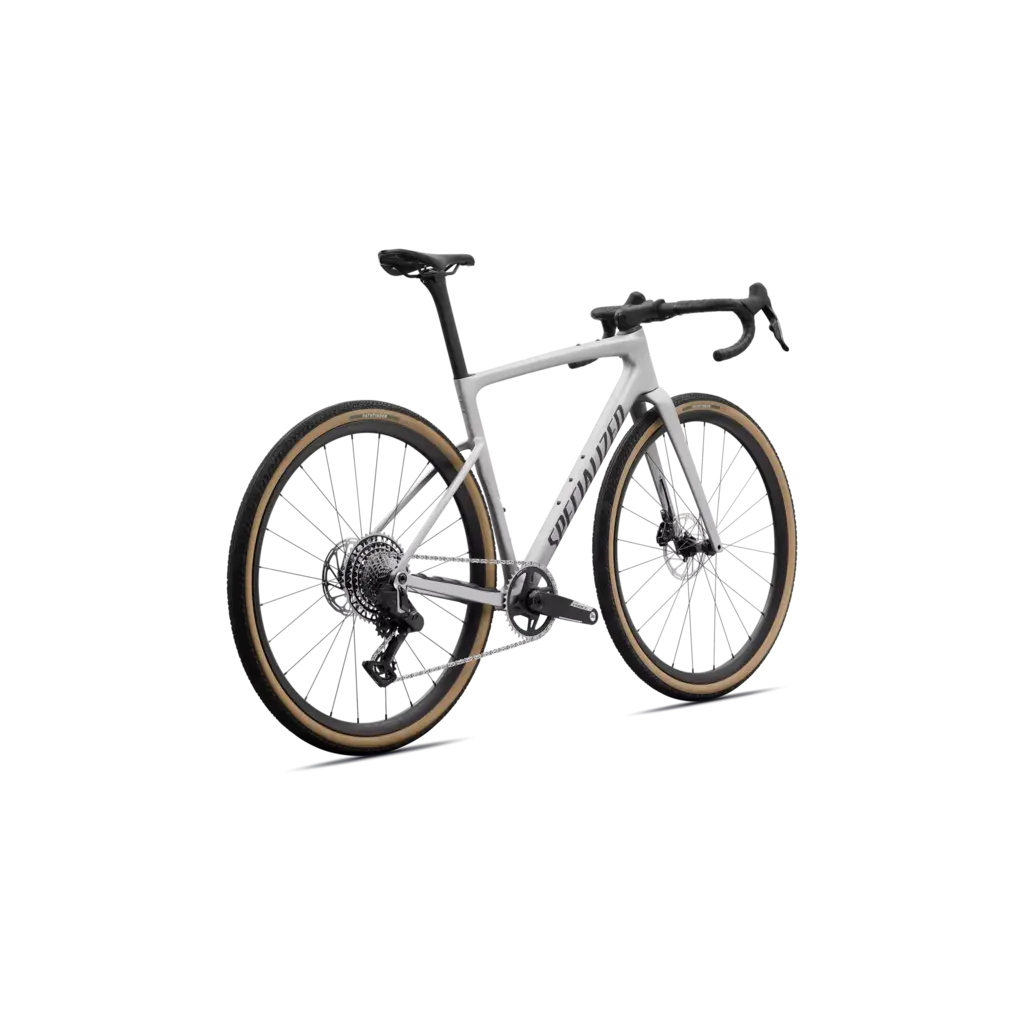

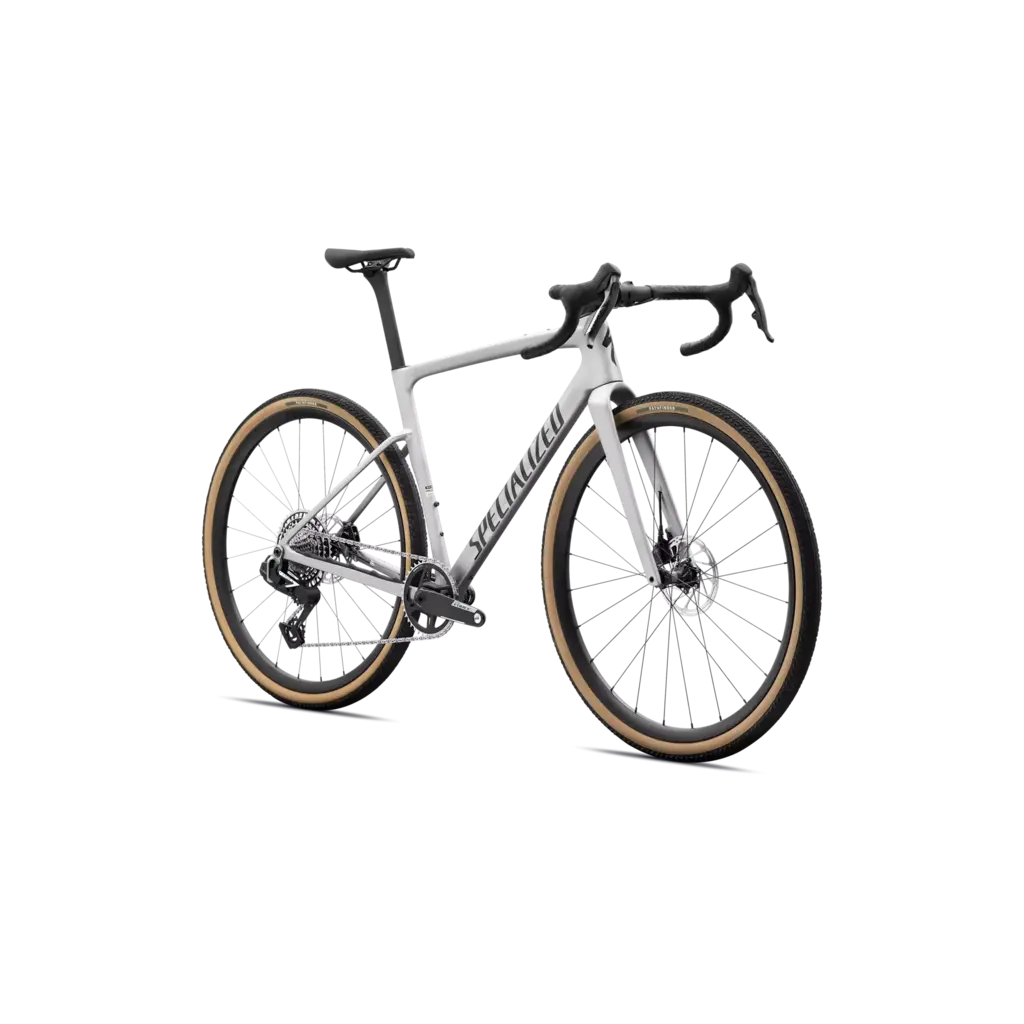

2027 Specialized Crux Expert - Force XPLR

Description

Crux 5 Expert

Eat My Dust

The Crux 5 was born from the fastest gravel race bike ever made. Not just because it’s the lightest. Not just because it’s our most aero. Not just because it handles dirt like a Tarmac handles pavement. But because it delivers the lowest real-world Time to Finish of any gravel bike ever made. Crux 5 turns more of your effort into pure speed—validated across real race courses, real terrain, and real riders. When the goal is the top step, nothing in gravel gets you there faster.

At a Glance

Use

Gravel Racing

Frame

FACT 10r Carbon: 897 grams

Wheels

Roval Terra C III

Bar and Stem

Roval Terra Handlebar and Rapide Stem

Drivetrain

SRAM Force AXS XPLR

Weight

8.22 kg

Specifications

Frameset

Frame: Crux 5 FACT 10r Carbon, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout

Suspension

Fork: S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc

Brakes

Front Brake: SRAM Force E1, hydraulic disc

Rear Brake: SRAM Force E1, hydraulic disc

Drivetrain

Bottom Bracket: SRAM DUB BSA 68 Wide

Rear Derailleur: SRAM Force AXS E1 XPLR, 13-speed

Shift Levers: SRAM Force AXS E1, hydraulic disc

Chain: SRAM Force E1

Cassette: SRAM Force E1 XPLR, 13-speed, 10-46t

Crankset: SRAM Force E1 XPLR, DUB Wide, 40t

Wheels & tires

Inner Tubes: 700x32-50mm, 40mm Presta valve

Front Wheel: Roval Terra C III, 27mm inner width carbon rim, tubeless ready, 25.5mm depth, DT 370 hub, 24h, Sapim D-Light spokes

Rear Wheel: Roval Terra C III, 27mm inner width carbon rim, tubeless ready, 25.5mm depth, DT 370 hub, 24h, Sapim D-Light spokes

Front Tire: Pathfinder 700x45, Tubeless Ready

Rear Tire: Pathfinder 700x45, Tubeless Ready

Cockpit

Saddle: Body Geometry Power Expert

SeatPost: S-Works Tarmac SL8 Carbon seat post, FACT Carbon, 15mm offset

Stem: Roval Rapide, alloy, 4 bolt, -6 degrees

Handlebars: Roval Terra, carbon, 103mm drop x 70mm reach x 12º flare

Tape: Supacaz Super Sticky Kush

Seat Binder: Integrated Wedge

Product details

Product ID: 294830

Weight

Weight Size: 56

Weight: 8.22 kg (18 lb, 2.0 oz)
