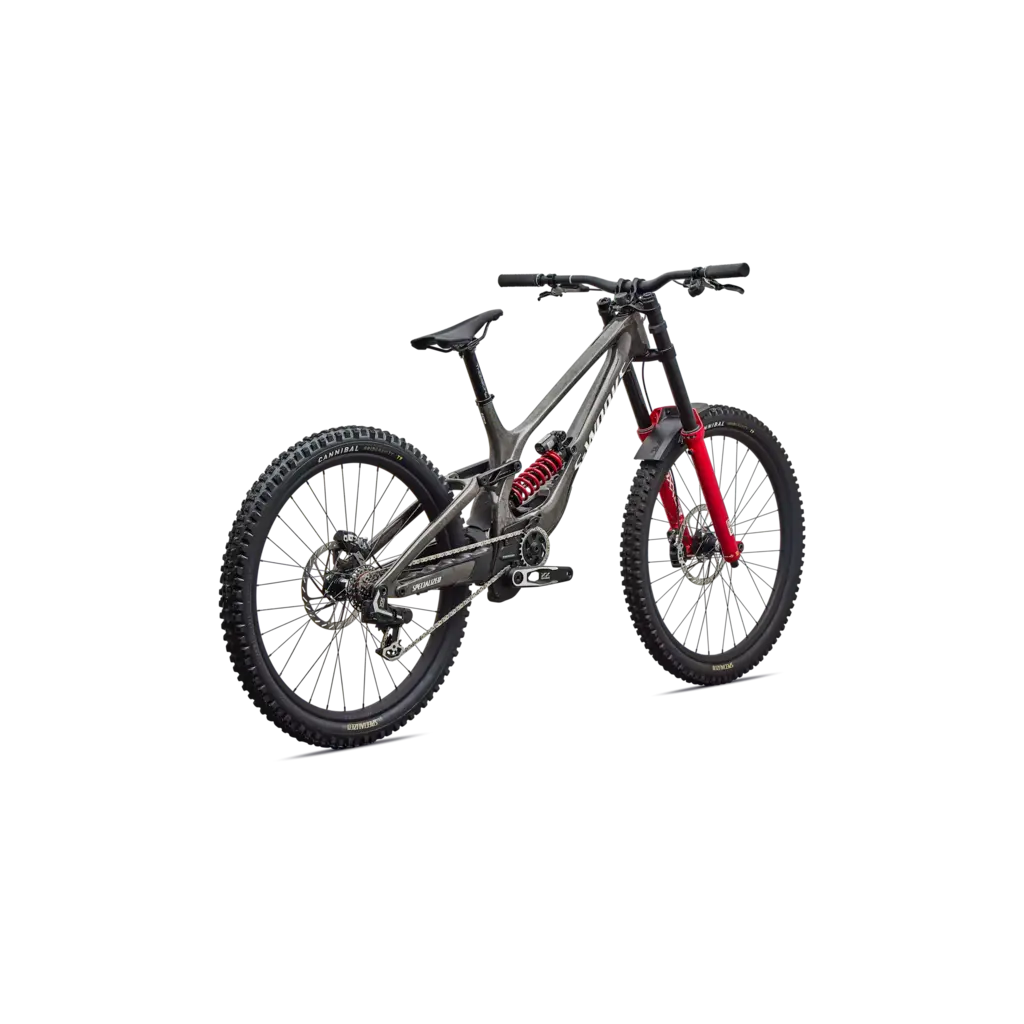

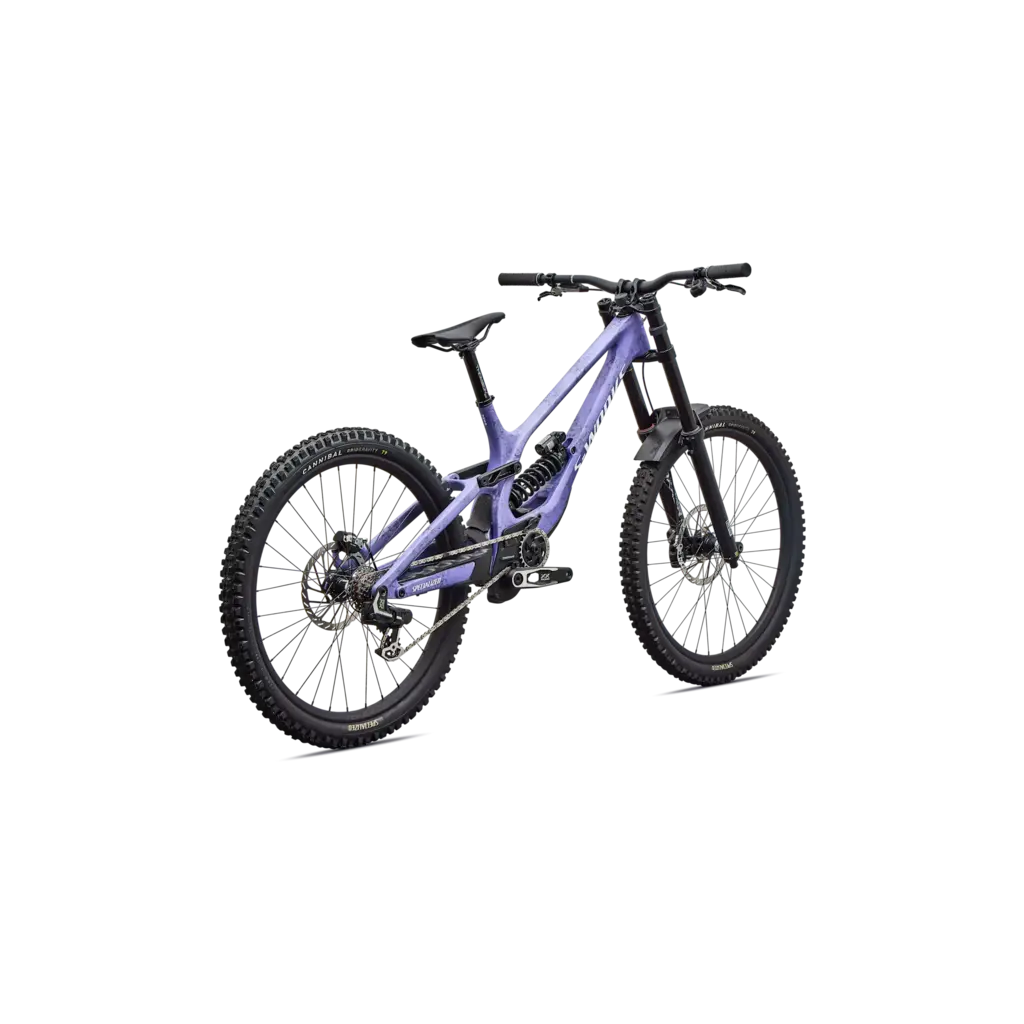

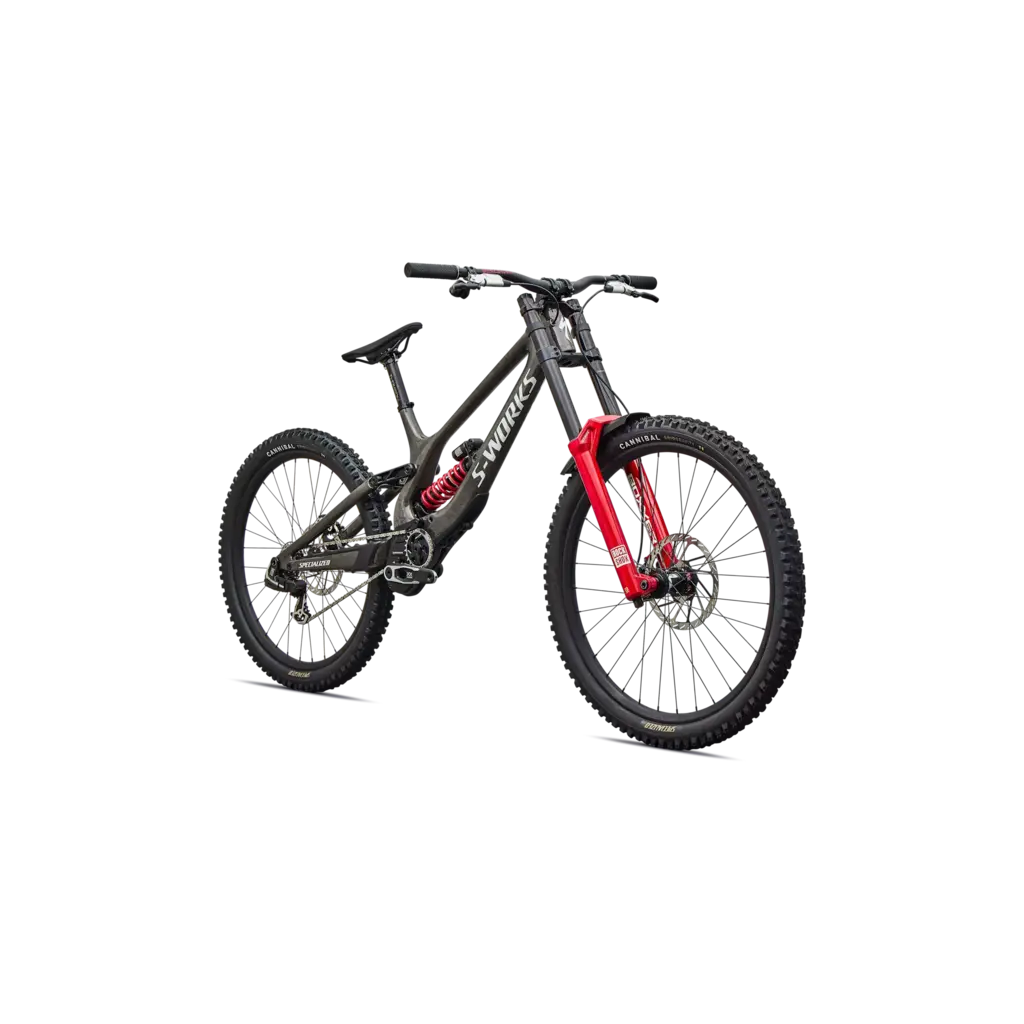

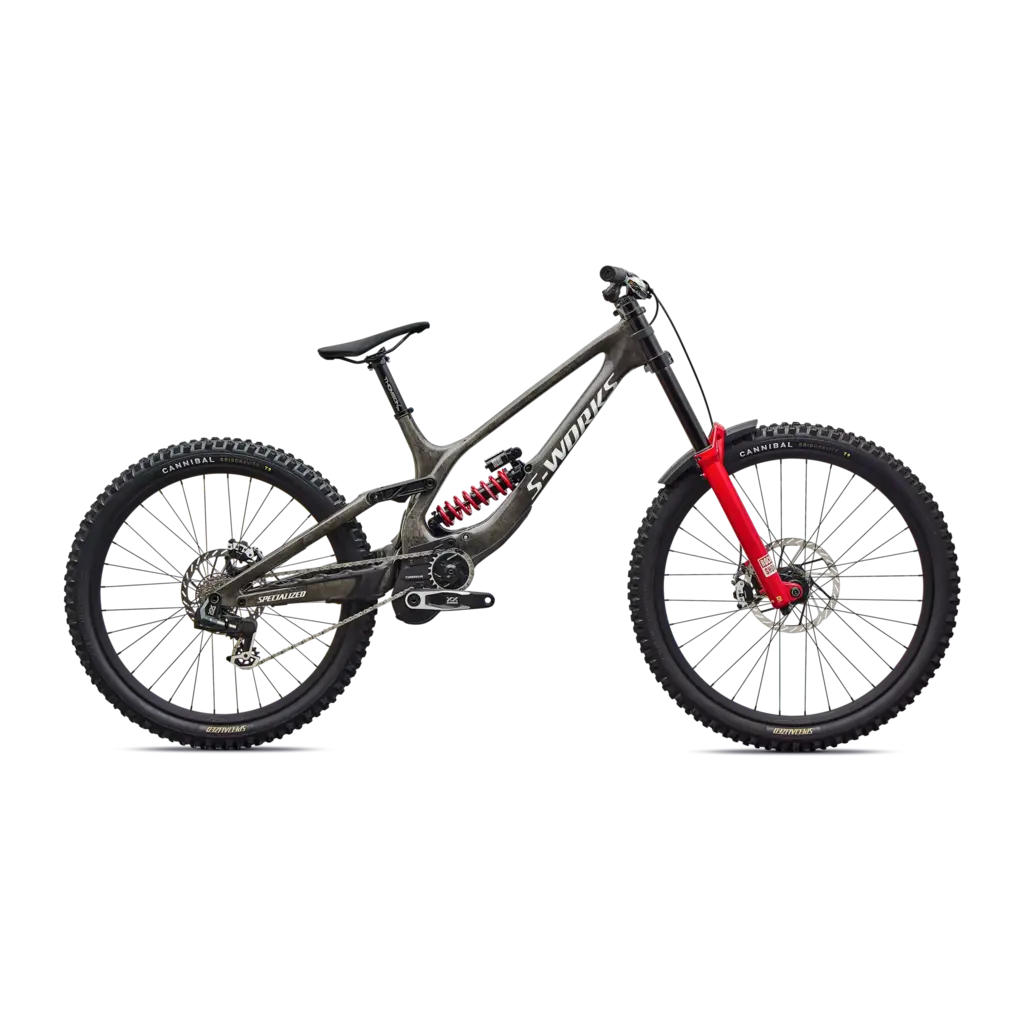

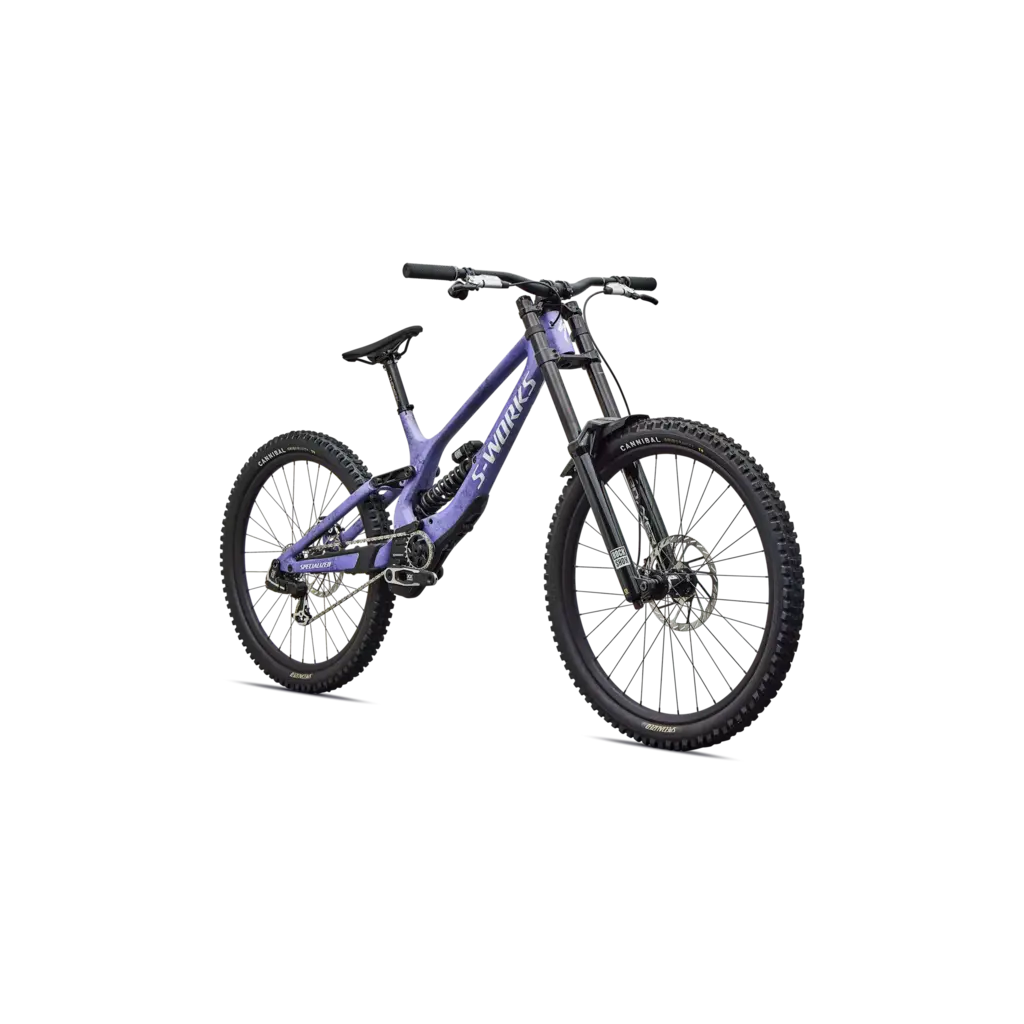

2027 S-Works Demo 11

Product Details

The Speed of Trust

Unmatched Control, Composure, Speed.

Developed over three years with World Cup-winning prototypes and the fastest riders on the planet, Demo 11 had one objective: go faster everywhere. Not through hype. Through race-proven innovation that delivers the predictable control and composure racers trust to drop into flow instantly, commit harder, hold faster lines, and carry more speed from gate to finish.

At a Glance

Use

World Cup Downhill Racing

Frame

FACT 11m Carbon Race Chassis w/OBB Linkage

Suspension

Fork: 200mm RockShox Boxxer Ultimate
Shock: RockShox Vivid Coil Ultimate DH (200mm Travel)

Drivetrain

HighGear Drivetrain, +30mm Clearance
SRAM XX DH Transmission

Brakes

SRAM Maven Ultimate brakes (220/200)

Wheels

Roval Traverse Gravity Rims with DT Swiss 350 hubs

Technical Specifications

Frameset

Frame: 200mm travel FACT 11m carbon frame with HighGear system, 165mm cranks, reach adjust headset cups, BB adjust, full internal cable routing, 148mm rear spacing

Seat Binder: Specialized Alloy 34.9, Steel Bolt

Suspension

Fork: Rockshox Boxxer Ultimate, tall crowns, 52mm offset, 200mm travel

Rear Shock: Rockshox Vivid Coil Ultimate DH, 250x75mm,S3 - 450lbs., S4 - 500lbs., S5 - 525lbs

Brakes

Rear Brake: SRAM Maven Ultimate B1, 4-piston caliper, hydraulic disc, 200mm rotor

Front Brake: SRAM Maven Ultimate B1, 4-piston caliper, hydraulic disc, 220mm rotor

Drivetrain

Shift Levers: SRAM AXS Pod Ultimate with DISCRETE CLAMP

Cassette: SRAM CS XS 797 T-TYPE 10-24 DH XD

Bottom Bracket: SRAM GXP

Rear Derailleur: SRAM XX DH AXS T-Type

Crankset: SRAM XX HighGear Crankset, 165mm length.

Chain: SRAM XX, T-Type

Wheels & tires

Rear Tire: Cannibal GRID Gravity T9 TLR Downhill Tire 27.5x2.4"

Front Tire: Cannibal GRID Gravity T9 TLR Downhill Tire 29x2.4

Rear Wheel: Roval Traverse Gravity Alloy 27.5" Rim, 32h alloy rim, 28mm inner rim width, DT Swiss 350 hub, 12x148mm, Sapim D-Light Spokes

Front Wheel: Roval Traverse Gravity Alloy 29" Rim, 32h alloy rim, 28mm inner rim width, DT Swiss 350 hub, 20x110mm, Sapim D-Light Spokes

Inner Tubes: Standard, Presta Valve

Cockpit

Saddle: Body Geometry Henge DH, hollow titanium rails, 130mm

Grips: Deity Supracush, Lock On, 34mm OD, 133mm Length, Black

Stem: SRAM Descendant DH Stem, 35mm Clamp, 50mm length, Direct Mount, Black

Handlebars: SRAM Descendant Handlebar, 35mm clamp, 800mm width, 30mm rise

SeatPost: Thomson, alloy, straight, 12-degree clamp

Product details

Product ID: 293955

Weight

Weight: 19.03 kg (41 lb, 15.3 oz)

Weight Size: S4
