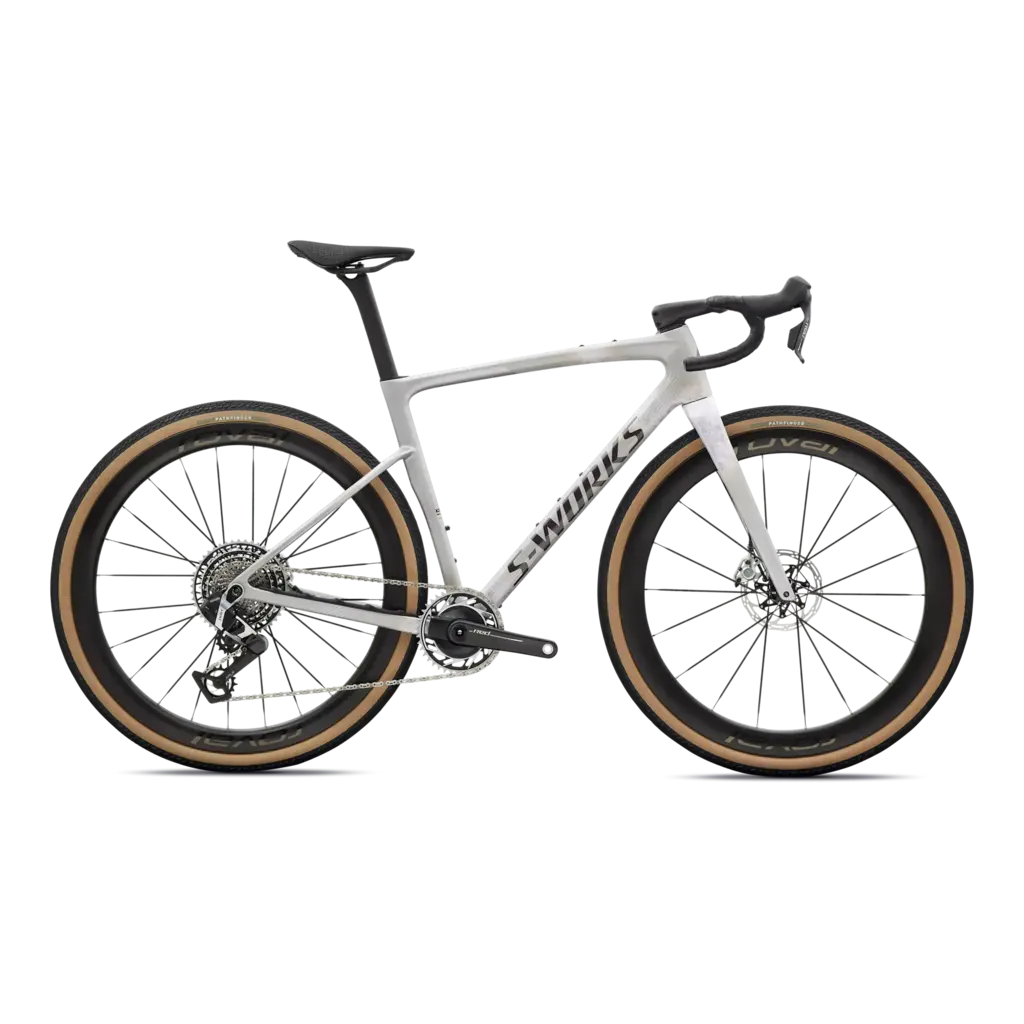

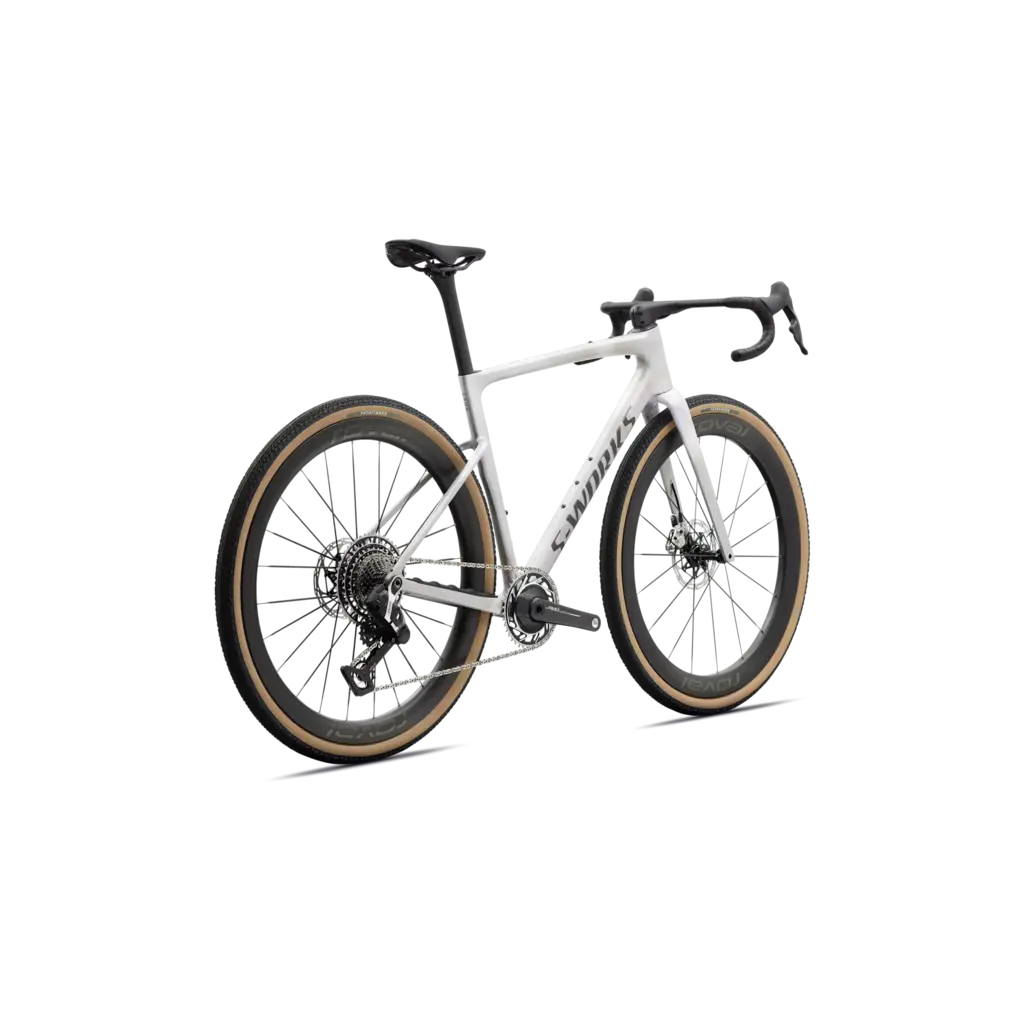

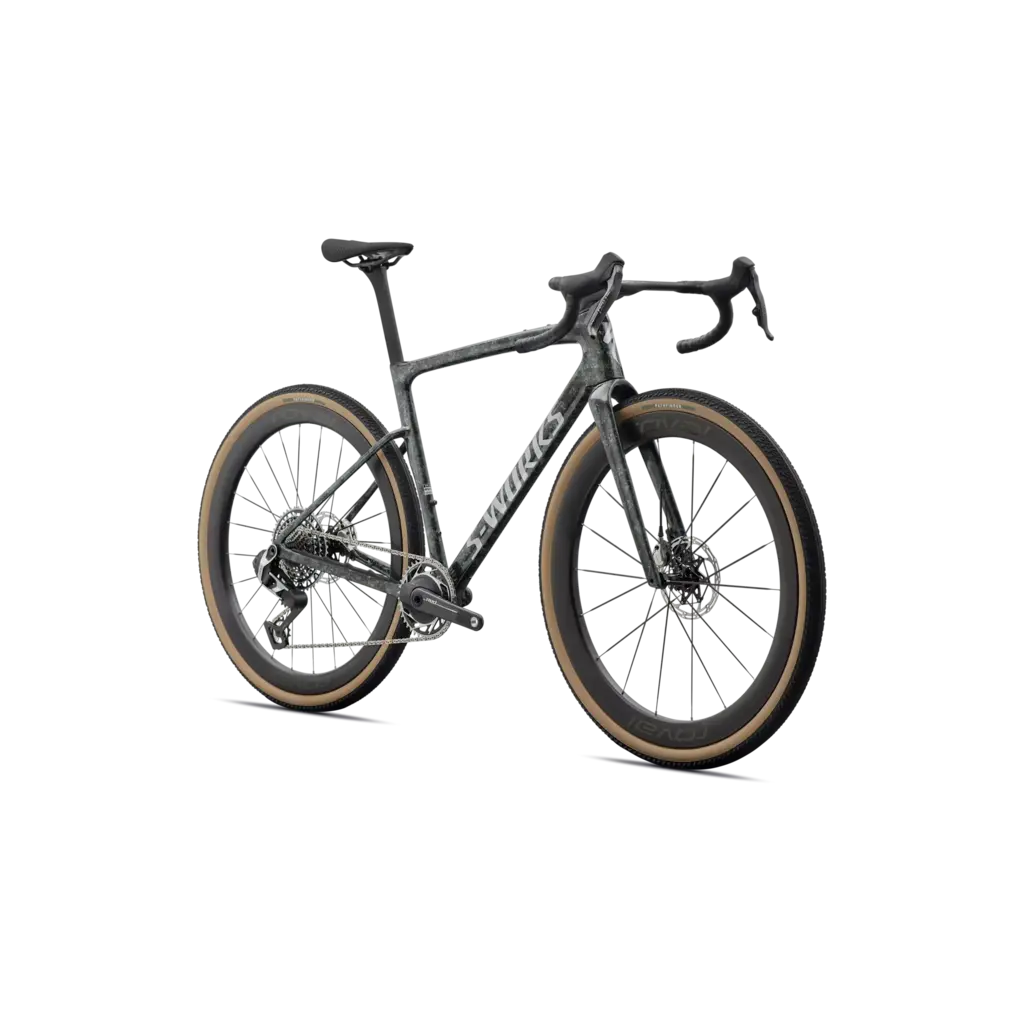

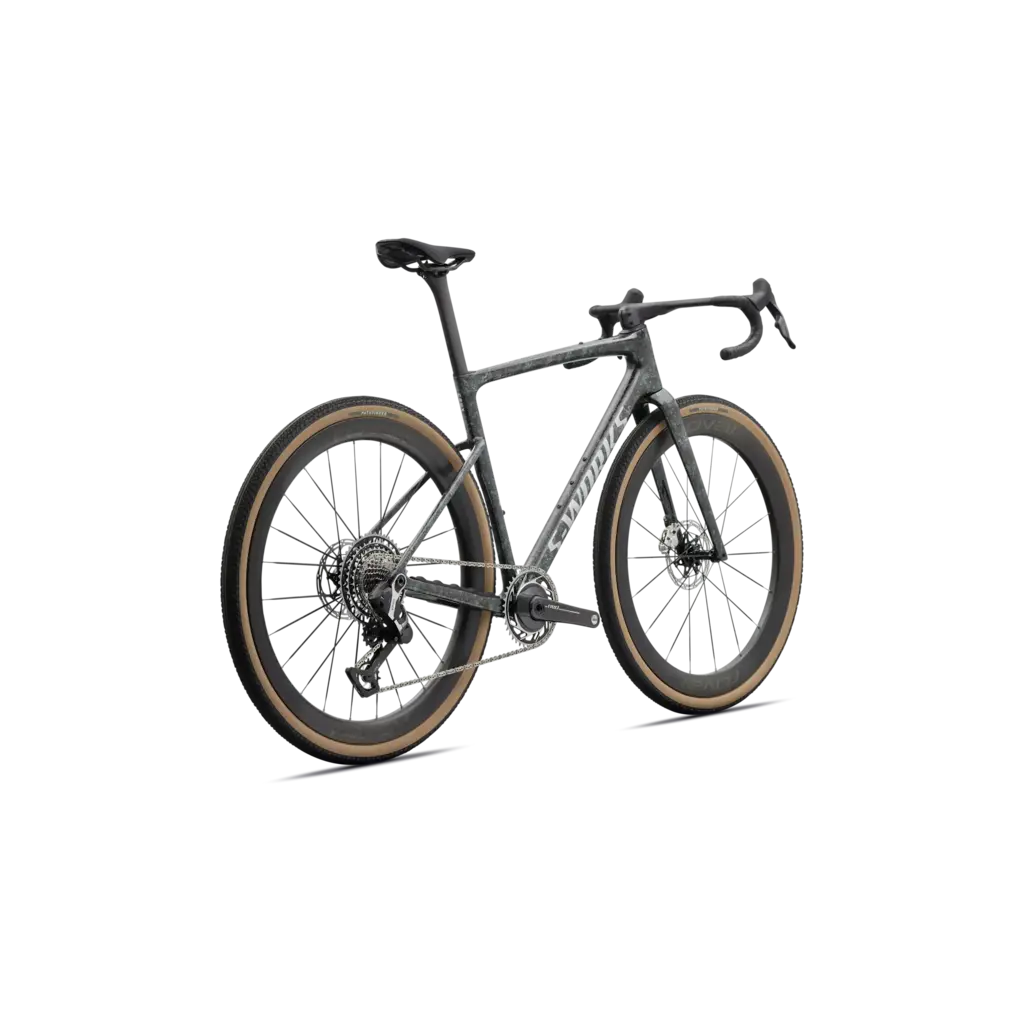

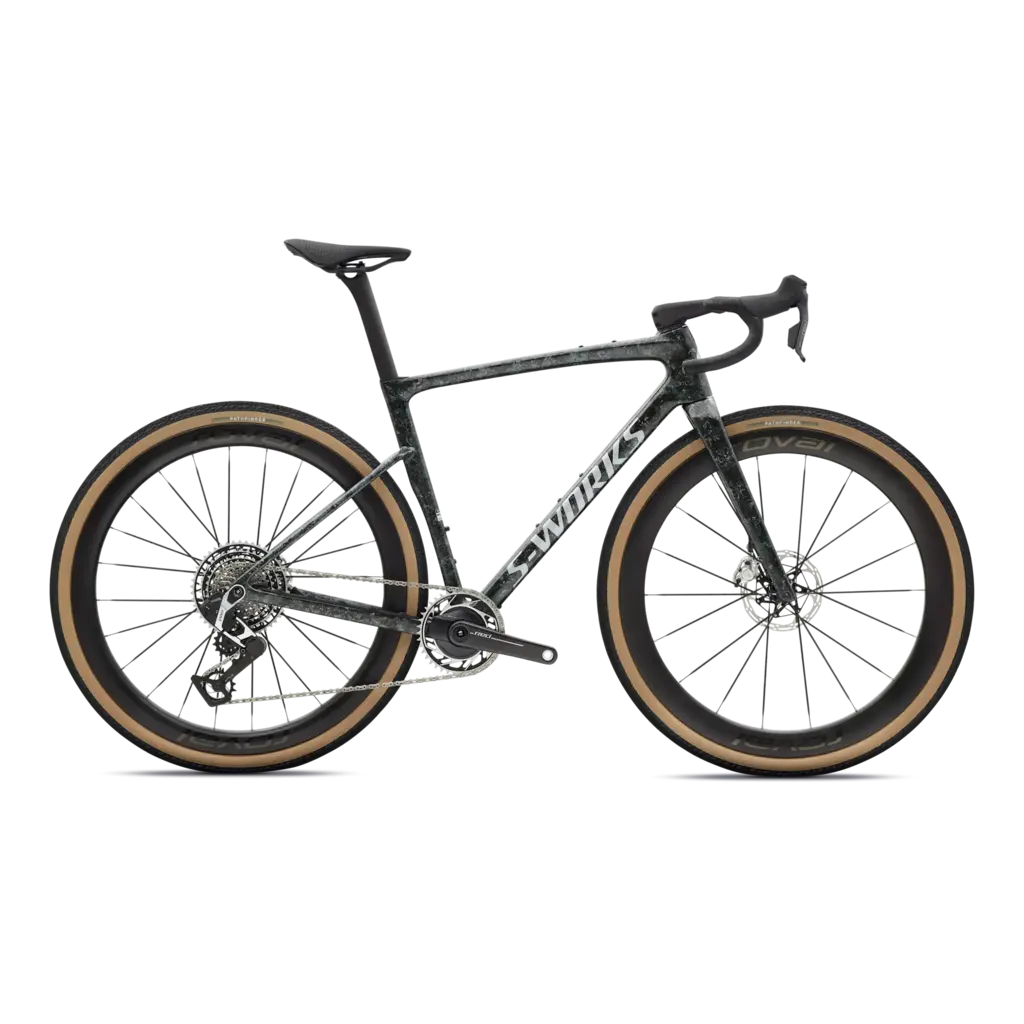

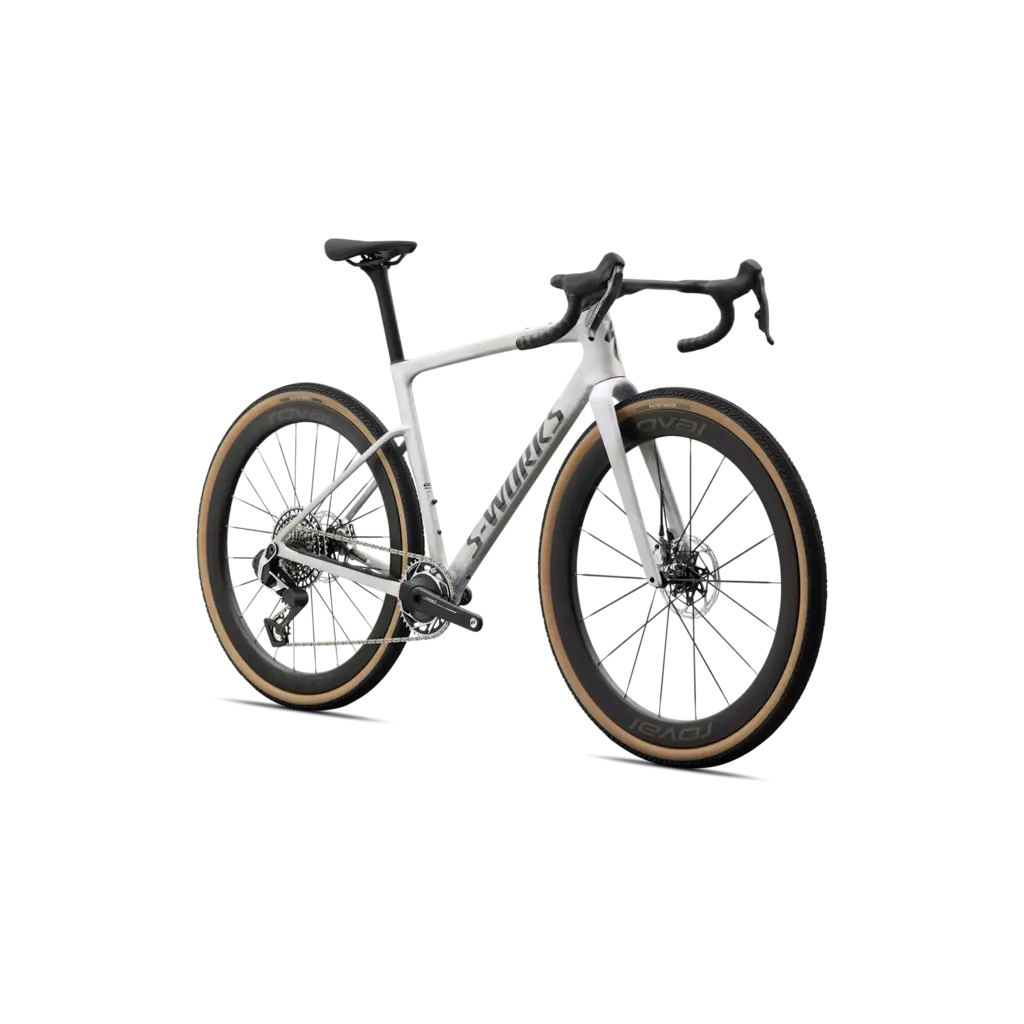

2027 S-Works Crux 5 - Red XPLR

Description

S-Works Crux 5

Eat My Dust

The S-Works Crux 5 is the fastest gravel race bike ever made. Not just because it’s the lightest. Not just because it’s our most aero. Not just because it handles dirt like a Tarmac handles pavement. But because it delivers the lowest real-world Time to Finish of any gravel bike ever made. Crux 5 turns more of your effort into pure speed—validated across real race courses, real terrain, and real riders. When the goal is the top step, nothing in gravel gets you there faster.

At a Glance

Use

Gravel Racing

Frame

FACT 12r Carbon: 789 grams

Wheels

Roval Terra Aero CLX

Cockpit

Roval Terra Integrated

Drivetrain

SRAM RED XPLR

Weight

7.1 kg

Specifications

Frameset

Frame: S-Works Crux 5 FACT 12r Carbon, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout

Suspension

Fork: S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc

Brakes

Front Brake: SRAM RED E1, hydraulic disc

Rear Brake: SRAM RED E1, hydraulic disc

Drivetrain

Bottom Bracket: Ceramic Speed BB Alpha, BSA DUB

Shift Levers: SRAM RED AXS E1, hydraulic disc

Rear Derailleur: SRAM RED AXS XPLR E1, 13-speed

Chain: SRAM RED E1

Cassette: SRAM RED XPLR E1, 13-speed, 10-46t

Crankset: SRAM RED XPLR E1, Quarq power meter, 40t

Wheels & tires

Inner Tubes: 700x32x50mm, 60mm Presta valve

Front Tire: Pathfinder 700x45, Tubeless Ready

Rear Tire: Pathfinder 700x45, Tubeless Ready

Front Wheel: Roval Terra Aero CLX, 27mm internal width, tubeless ready, 50mm depth, 18h, Roval LF18-F hub with ceramic SINC bearings, Centerlock disc, Roval by ARRIS, Composite Aero Spoke with Ti End Pieces

Rear Wheel: Roval Terra Aero CLX, 27mm internal width, tubeless ready, 45mm depth, 24h, Roval LF19-R hub with ceramic SINC bearings, Centerlock disc, Roval by ARRIS, Composite Aero Spoke with Ti End Pieces

Cockpit

Stem: Included in Handlebar

SeatPost: S-Works Tarmac SL8 Carbon seat post, FACT Carbon, 15mm offset, Lightweight Saddle Clamp

Handlebars: Roval Terra Cockpit, Integrated Bar/Stem

Saddle: S-Works Power with Mirror

Tape: Supacaz Super Sticky Kush

Seat Binder: Integrated Wedge

Product details

Product ID: 294828

Weight

Weight Size: 56

Weight: 7.1 kg (15 lb, 10.4 oz)
