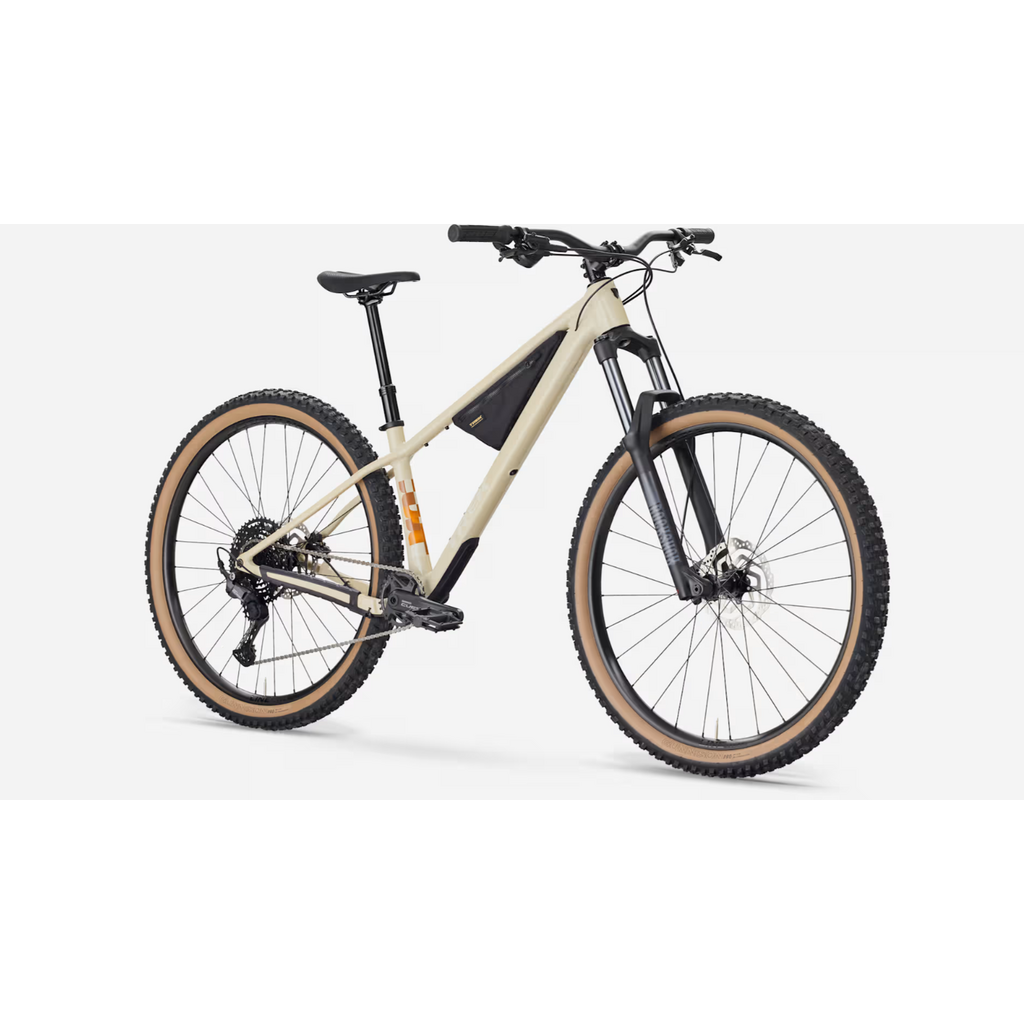

Roscoe 7 is a wild and playful hardtail that’s ready to rip anywhere from rowdy singletrack to dirt jumps. Its Alpha Platinum Aluminium frame pairs capable geometry with a RockShox Recon Silver fork (150 mm travel) for gobbling up rocks, while a 10-speed Shimano CUES drivetrain provides low-maintenance, clean shifting. It’s finished with 2-piston Shimano MT200 hydraulic disc brakes for stopping power that doesn’t break the bank.
- Frame
-
Alpha Platinum Aluminium, tapered head tube, ZS headset, internal derailleur and dropper post routing, ISCG 05, threaded BB, UDH, 148x12 mm thru axle
- Fork
-
RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 42 mm offset, Boost110, 15 mm Maxle Stealth, 150 mm travel
- Hub front
-
Shimano TC500 alloy, CentreLock, 110x15 mm thru axle
- Hub rear
-
Shimano TC500 alloy, CentreLock, 148x12 mm thru axle
- Skewer rear
-
Bontrager Switch thru axle, removable lever
- *Rim
-
Size: S, M, ML, L, XL
Bontrager Line TLR 30, Tubeless-Ready, 28-hole, Presta valve
Size: S, M, ML, L, XL
Bontrager Line TLR 30, Tubeless-Ready, 32-hole, Presta valve
- *Tyre
-
Size: S
Bontrager Gunnison Pro XR, Tubeless-Ready, wire bead, 60 tpi, 27.5x2.40"
Size: M, ML, L, XL
Bontrager Gunnison Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.40"
- Rim strip
-
Bontrager TLR
- Max tyre size
- Frame: 29x2.60", Fork: See manufacturer
- Shifter
-
- Rear derailleur
-

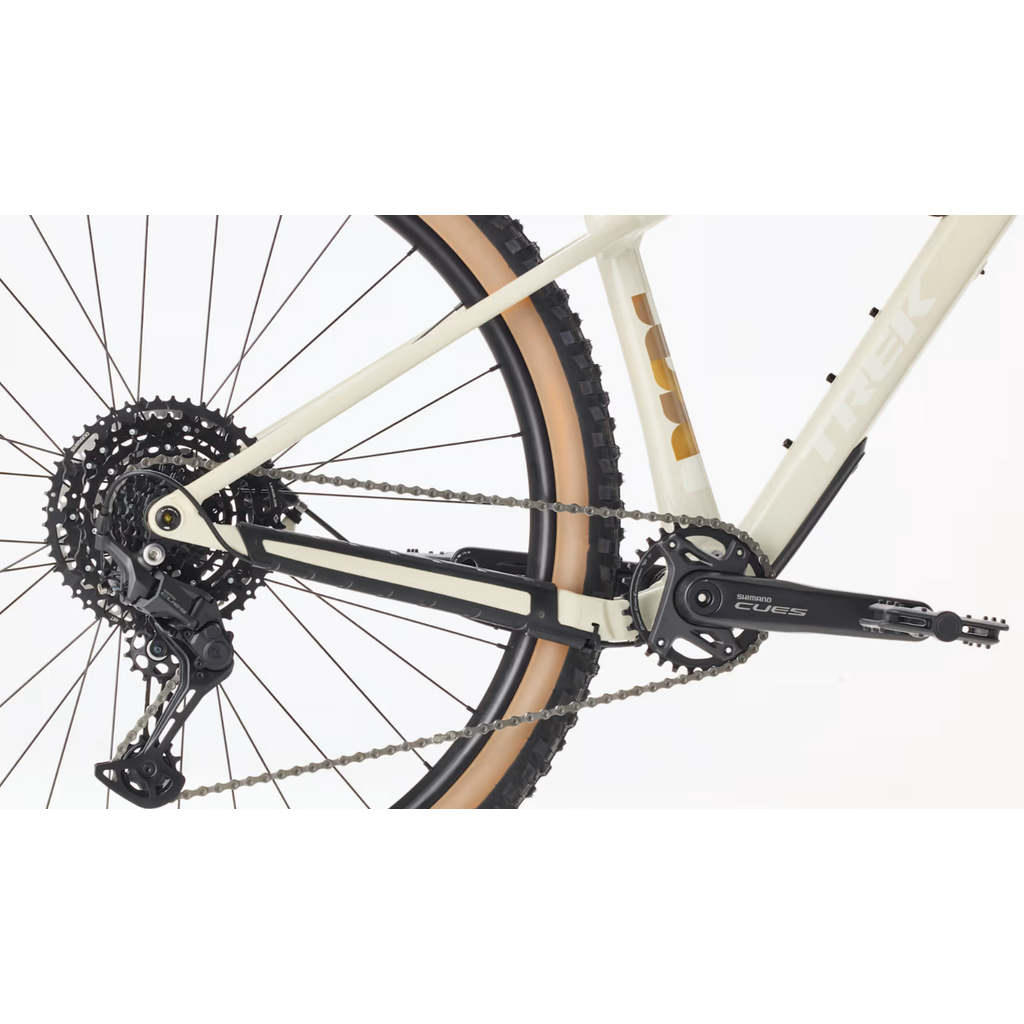

- Crank
-
Shimano CUES U6000, 30T, 55 mm chain line, 170 mm length
- Bottom bracket
-
- Cassette
-
Shimano CUES LG300, LINKGLIDE, 11-48, 10-speed
- Chain
-
- Pedal
-
VP-536 nylon platform
- Max. chainring size
- 1x: 34T, min 28T
- Saddle
-
Bontrager Verse P3, steel rails
- *Seatpost
-
Size: S
TranzX JD-YSI34, 150 mm travel, internal routing, 31.6 mm, 456 mm length
Size: M, ML
TranzX JD-YSI34, 170mm travel, internal routing, 31.6 mm, 500mm length
Size: L, XL
TranzX JD-YSI34, 200mm travel, internal routing, 31.6 mm, 565mm length
- *Handlebar
-
Size: S
Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
Size: M, ML, L, XL
Bontrager Comp, alloy, 31.8 mm, 40mm rise, 780 mm width
- Grips
-
Trek Line Comp, nylon lock-on
- *Stem
-
Size: S
Bontrager Comp, 31.8 mm, 7-degree, 35 mm length
Size: M, ML, L, XL
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length
- Head set
-
FSA Orbit, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom, 1.5 crown
- Brake
-
Shimano MT200 hydraulic disc
- Brake rotor
-
Shimano RT10, CenterLock, 180 mm
- Brake Set
-
Shimano MT200 hydraulic disc
- Rotor size
- Max brake rotor sizes – Frame: 203 mm, min 180 mm, Fork: see fork manufacturer
- Weight
- M – 14.53 kg/32.04 lb (with TLR sealant, no tubes)
- Weight limit
- This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
