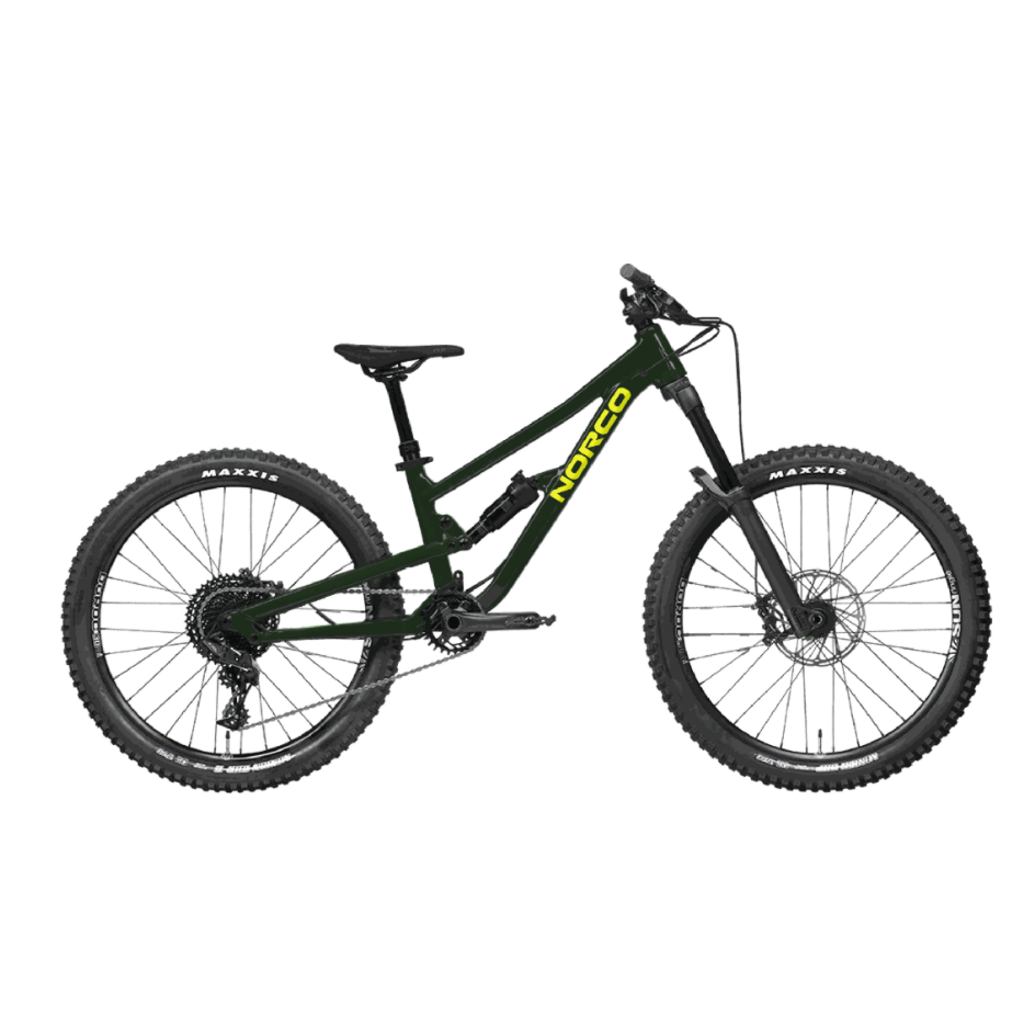

The Fluid FS Youth’s progressive design provides the features and ride quality of our best adult bikes in a pint-sized package. Standover has been maximized, suspension tunes optimized, and frame geometry honed to bring the distinct Norco ride to every model.



Design features

• Features a lower bottom bracket height and more generous standover clearance than previous models.
• A specially tuned linkage gives young riders the same level of control and suspension performance as our adult bikes.
• Smaller riders require less spring force in their suspension components and dropper posts. Less spring force needs less damping, so we’ve spec’d youth-specific tunes on all Fluid Youth bikes so the suspension and droppers move properly under a rider below 90 pounds.

Specifications

• Prowheel Cartridge BB
• Tektro HD-J285
• microSHIFT Advent, 11-38T, 9spd
• KMC X9, 9spd
• Prowheel Junior Alloy, 28T, 140mm
• Manitou JUNIT Sport 24", 145mm Travel, 42mm Offset, alloy stanchion
• 6061 Alloy, 120mm Travel, UDH, Hangerless Interface Compatible, Ride Aligned™
• Tektro HD-J285, 2-P, Resin Pads, 2 finger lever blade
• Tektro TR160-22, 160mm, 6-bolt
• Formula DC-511, 15x110mm Boost, 32h, 6-bolt
• Norco Youth Lockon, 115mm Length
• Norco 6061 Alloy DB , 660mm, 20mm rise
• Tapered 1-1/8"- 1.5",(ZS44/28.6 | ZS56/40)
• Tektro HD-J285, 2-P, Resin Pads, 2 finger lever blade
• Tektro TR160-22, 160mm, 6-bolt
• microSHIFT Advent, 9spd, Short Cage Clutch
• Formula DC-3248,12x148mm Boost, HG, 32h, 6-bolt
• X-Fusion 02 Pro R, 170x35mm Standard, A-Tune Soft
• WTB Solano Med, 142x240 mm, Steel Rails
• TranzX YSP18BKL, 31.6mm, 100mm, Kids Tune
• Norco Alloy Nutted Clamp, 34.9mm ID
• microSHIFT Advent, 9spd
• Norco 6061, 35mm Length, 31.8mm Clamp
